- Ball mounted hardware allows for bearing to self level against a non flat surface
Ball Mounts

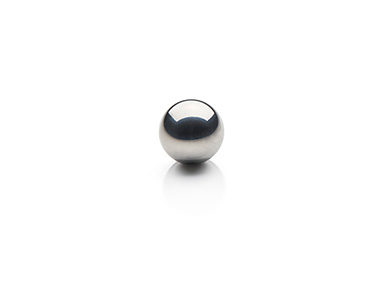

Made from Grade 25 stainless steel, New Way® Balls act as a simple and elegant solution for mounting our air bearing hardware. Ranging from the 6mm S90B023 up to the 25mm S90B006, these balls are compatible with both our Flat Round Air Bearings and Flat Rectangular Air Bearings.
While New Way offers numerous different mounting configurations and capabilities, these stainless-steel balls are the simplest solution by far, and provide a self-leveling interface between our Flat Air Bearings and your application or guide surface.
Applications
Our ball mounts have many benefits, including:
Self Levelling
Tolerancing
- Self levelling ensures constant parallelism
No Deflection
- Self levelling design ensures the bearing won’t deflect under high loads
Ball Mounts Product Line
Available in four sizes, and compatible with all of our Flat Round and Rectangular Air Bearings, New Way stainless steel balls provide you the flexibility to accommodate numerous air bearing configurations. Don't see the size you need? Contact us to discuss a custom order!
