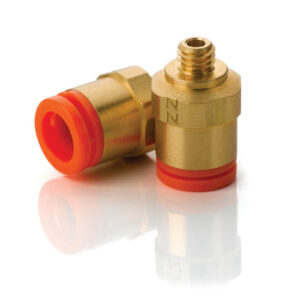

Quick Disconnect Fitting

10-32/0.250” Air Fittings Quick Disconnect

Size: Thread Size/ Tube O.D. - 10-32/ 0.250" Compatible With: Clear Polyurethane Tubing S90T004 - 0.170/ 0.250 S90T003 - 0.125/ 0.250 Compatible With: Air Bushings, English S307501 - 3.00" I.D. S305001 - 2.00" I.D. S303801 - 1.50" I.D.

Category: Air Fittings Quick Disconnect

Specification

Units: US METRIC

Title	Specifications
Part #	S90F003S90F003
Mating Tube OD "A"	1/4"6.35 mm
Thread Size "B"	10-3210-32
Fitting Hex Size "C"	1/4"6.35 mm
Thread Depth "D"	0.12”3 mm
Overall Length "E"	0.72”18.4 mm
