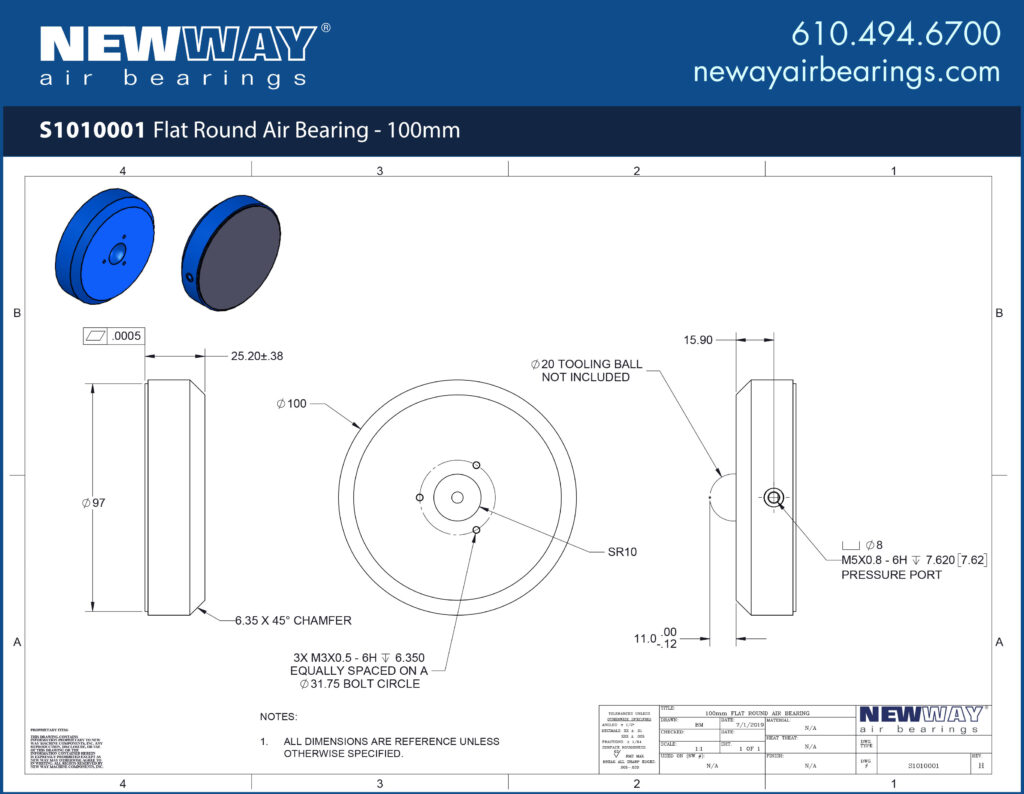

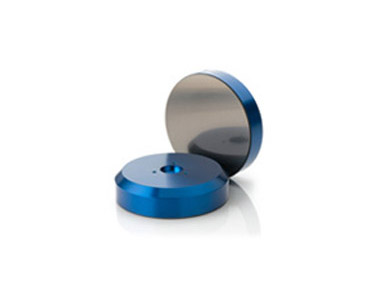

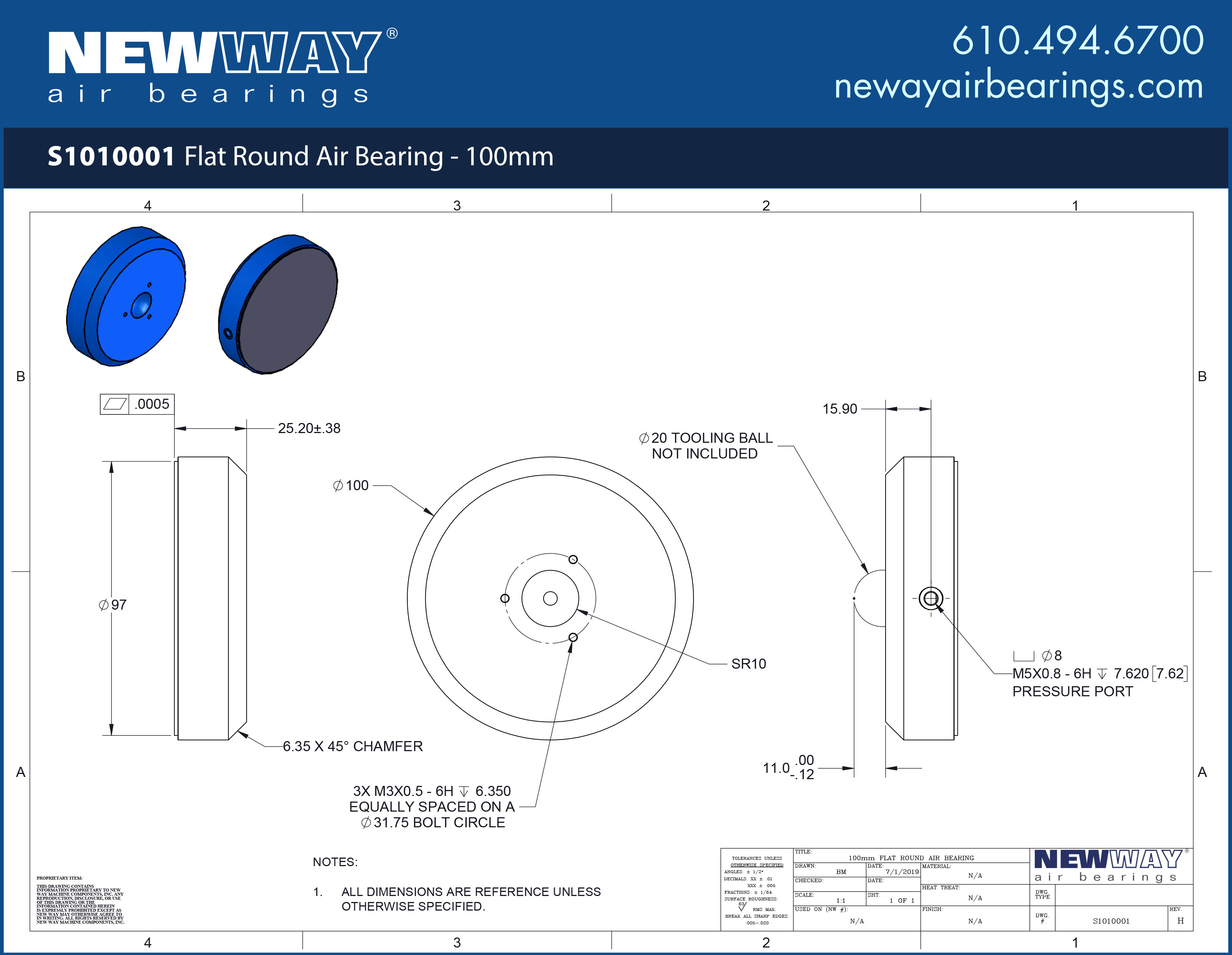

100mm Flat Round Air Bearing

New Way’s 100mm Flat Round porous media air bearing line provides another size option at the scale necessary for more significant load-carrying capability. These bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, replace or change. Contact New Way at 610.494.6700 to discuss your specific application’s needs.

Units: US METRIC

Title	Specifications
Size	3.96 in100 mm
SKU	S1010001S1010001
Input Pressure	60 psi0.41 MPa

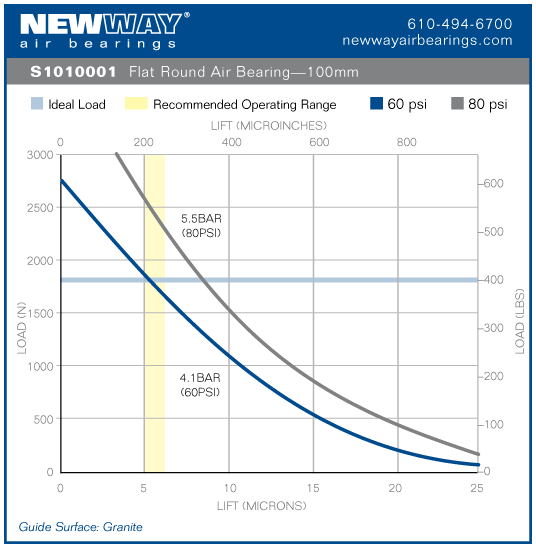

Ideal Load	399 lb1776 N
Stiffness	1.0 lb/μin175 N/μm
No Load Flow	4.0 - 6.8 SCFH1.73 - 2.94 NLPM
Fly Height	0.0002 in5 microns
Bearing Size	3.94 in100 mm
Bearing Height	0.98 in25 mm
Bearing Weight	0.97 lb0.44 kg
Housing Material/Finish	Aluminum/AnodizedAluminum/Anodized
Porous Media Material	CarbonCarbon
Bearing Face Surface Size - Carbon	3.90 in99 mm
Flatness	0.00002 in0.0005 mm
Ball Socket Size	0.79 in 20 mm
Pressure Port Thread	M5 x 0.8M5 x 0.8
Viable Pressure Range	60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply	100 psi0.689 MPa
Resolution	InfiniteInfinite
Maximum Speed	164 ft/s50 m/s
Common Guide Surfaces	Granite, hard-coated aluminum, ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum, ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish	16 RMS16 RMS
