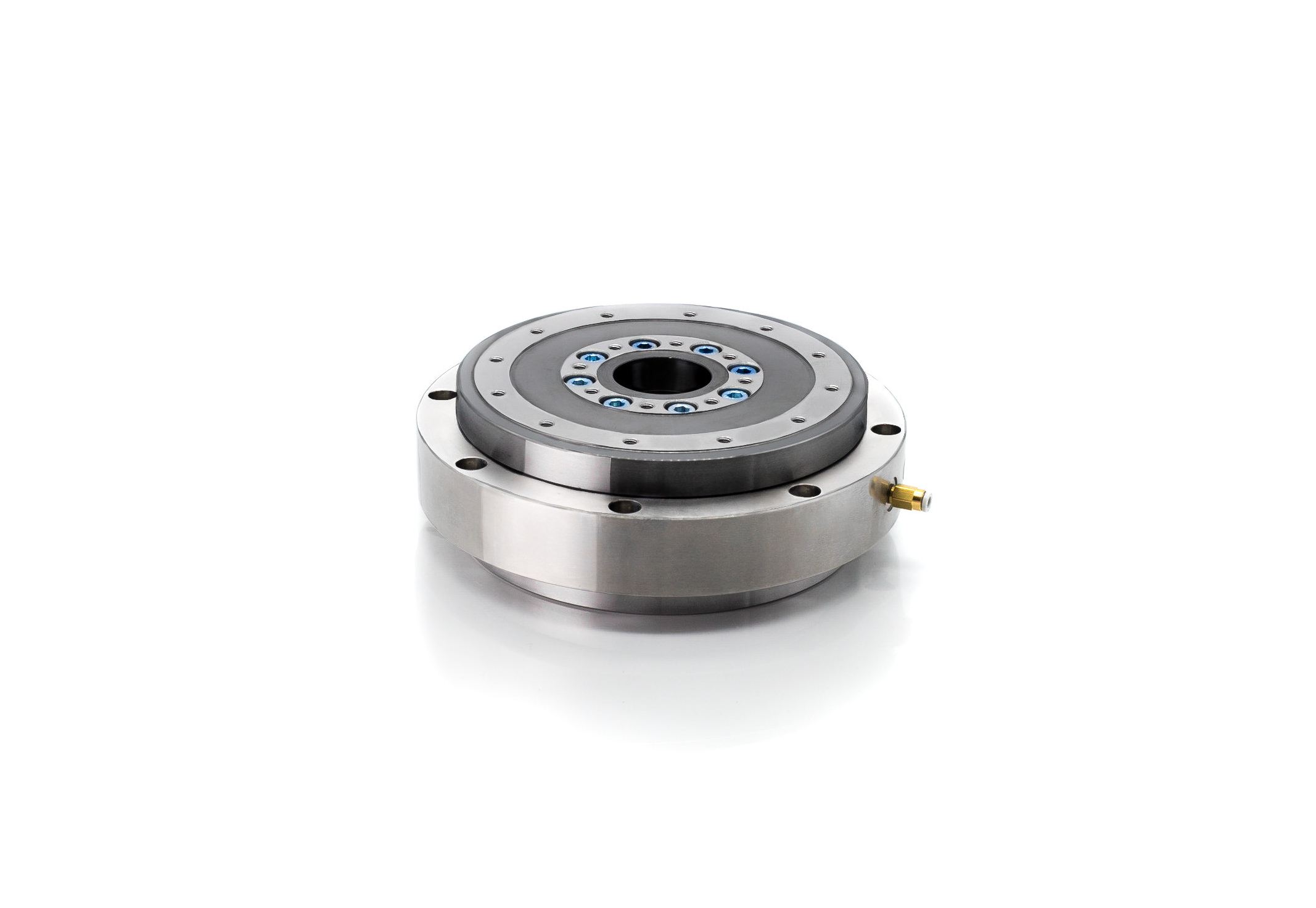

100mm “T” Series Air Spindle

The “T-Series” Spindles are an ideal assembly for building frictionless rotary motion, New Way spindles provide a fast, effective, precision out of the box solution. In either square or round stator configurations, this new product line gives you all the differential advantages of New Way porous media technology. For Specifications contact New Way Technical Support at: 610.364.3465.

Category: Air Spindles

Specification

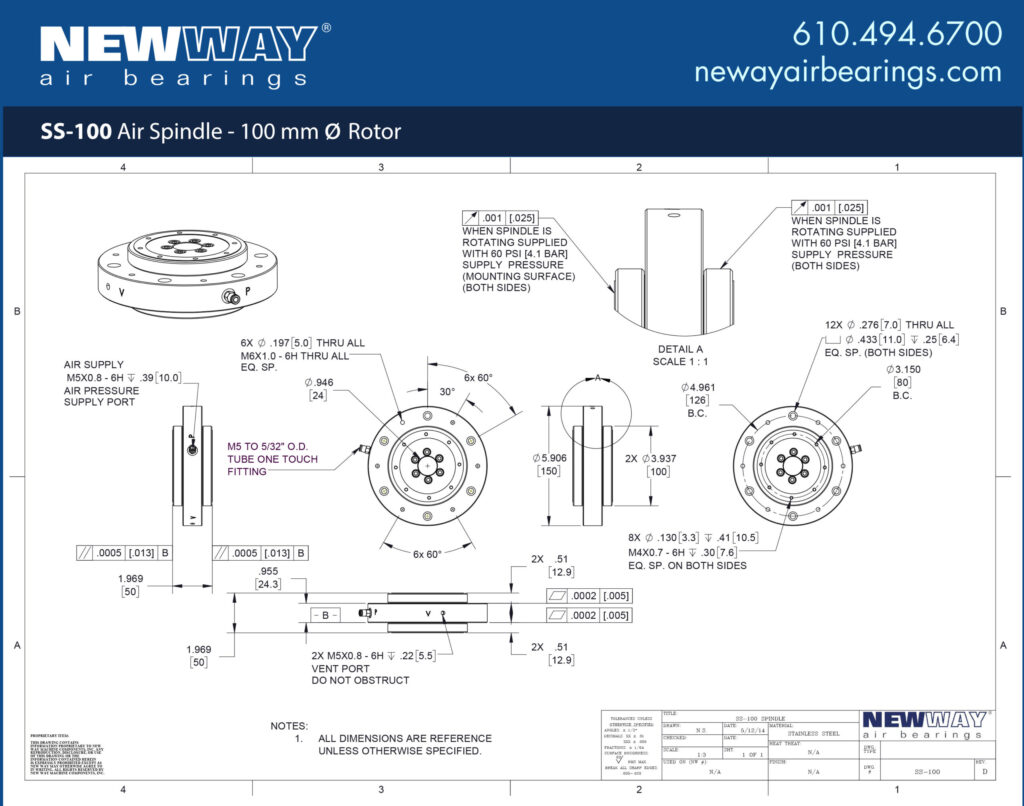

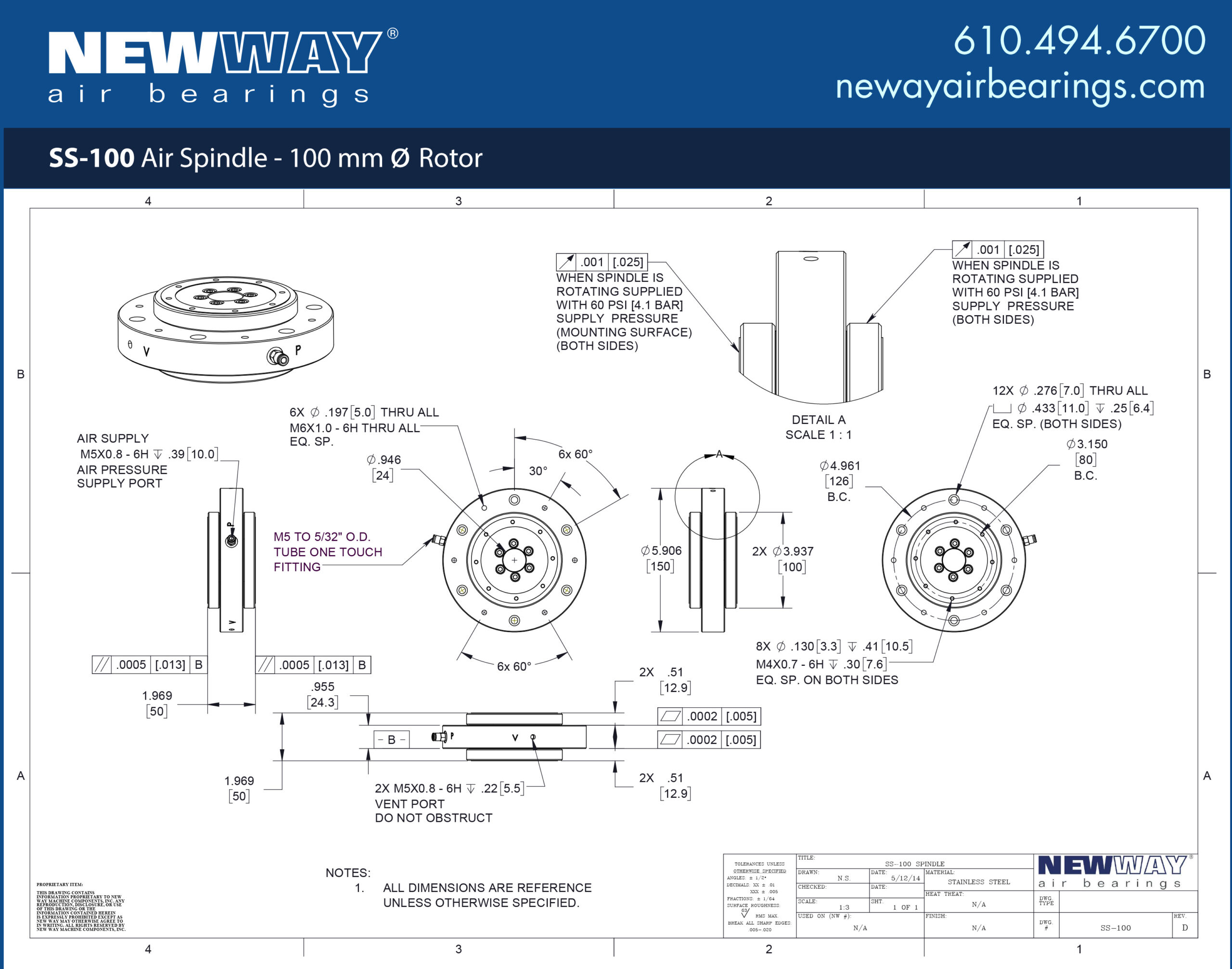

Engineering Drawings

Units: US METRIC

Title	Specifications
Size	3.9 in100 mm
SKU	SS-100SS-100
Input Pressure	60 psi0.41 MPa
Axial Load	132 lbs585 (N)
Radial Load	49 lbs216 (N)
Axial and Radial Error Motion	3.9 μin0.1 (uM)
Max. Speed	9554 (RPM)9554 (RPM)
Average No Load Flow	34.0 SCFH14.70 NLPM
Moment Load	TO BE ADDED17.13 Nm
Radial Stiffness	TO BE ADDED26 N/um
Axial Stiffness	TO BE ADDED68 N/um
