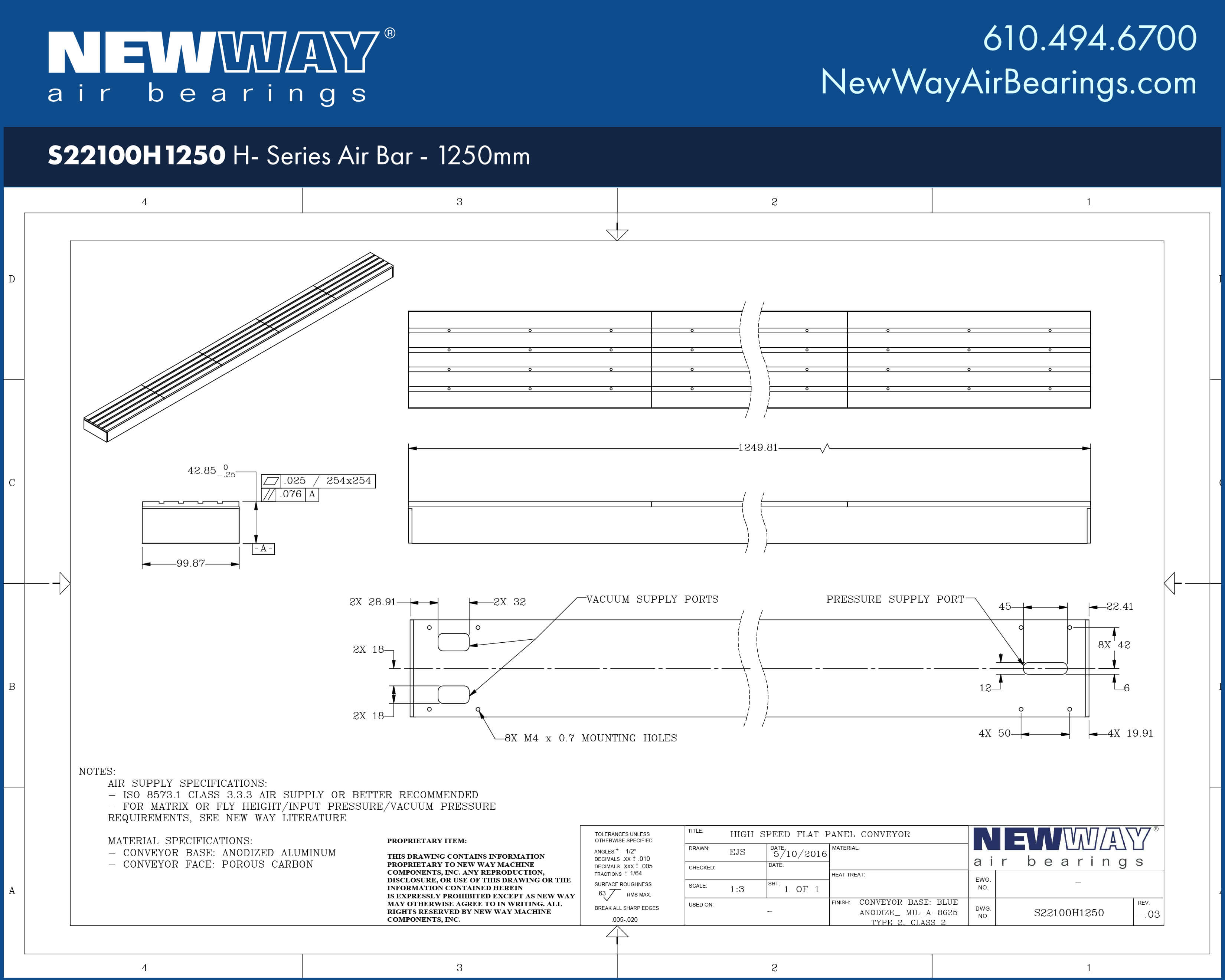

H-Series Conveyor Air Bearing 1250mm x 100mm

S22100H1250 is the largest standard high-speed (H-series) conveyor air bearing offered by New Way®. With the highest input vacuum flow of all New Way’s conveyor bearings, the H-series excels in applications demanding high-speed handling of thin materials. Stronger vacuum forces on the workpiece stiffen the air gap and allows greater control of the glass to be maintained. Porous Media Technology™ plumbs air pressure evenly across the bearing face, always maintaining zero contact and eliminating the risk of expensive crashes. Contact us today to see how H-series can improve your conveyor applications!
Category:
Units: US METRIC
Title Specifications
Size 1250mm1250mm
SKU S22100H1250S22100H1250
Fly Height 0.0012 in30 microns
Input Pressure 21.0 psi145 kPa
Input Pressure Flow 100.0 - 125.0 SCFH43.24 - 54.05 NLPM
Input Vacuum 0.0722 psi50.8 mm H20
Input Vacuum Flow 205.8 SCFH88.98 NLPM
Fly Height Range 0.00079-0.00197 in20-50 microns
Fly Height Control +/- 0.00059 in+/- 15 microns
Air Film Stiffness 571.01 lb/in0.10 N/micron
Stability +/- 1.96e-7+/- 5 nanometer
Length 49.21 in1250 mm
Width 3.94 in100 mm
Height 4.687 in42.85 mm
Weight 35.08 lb/ft4.85 kg/m
Bearing Surface Flatness 0.00098 in0.025 mm
Viable Pressure Range 0.5-40 psi3.48-275.79 kPa
Maximum Pressure Supply 40 psi275.70 kPa
Substrate Thickness 0.118 in0.3 mm and up
Maximum Substrate Speed 8.2 ft/s2.5 m/s
