1250mm transition zone air bar

1250MM Long x 80mm Wide Transition Zone Air Bar

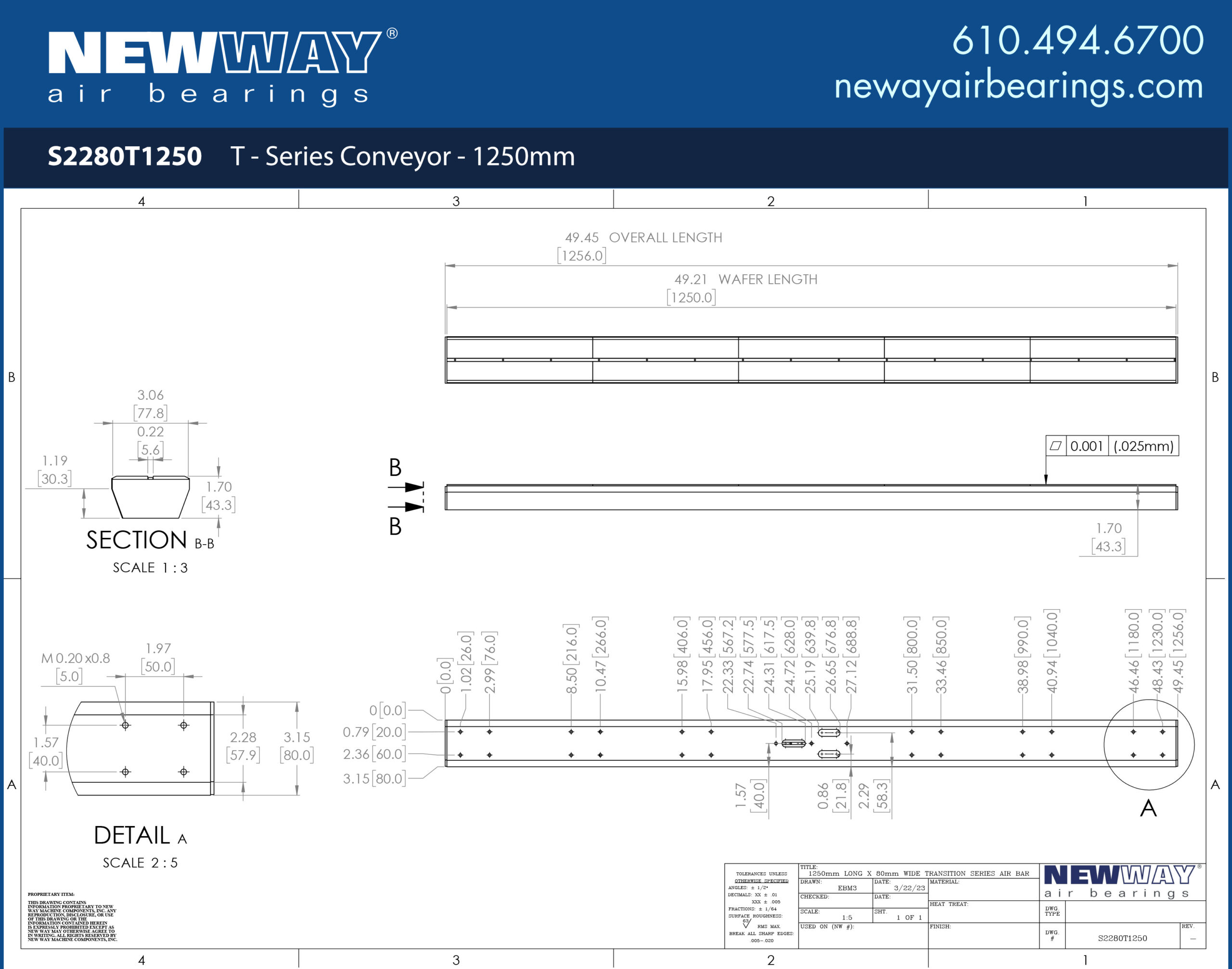

The largest of the New Way Transition Zone Air Bar line, the 1250mm by 80mm size provides the length necessary for maximum efficiency when building the arrays required for the large scale FPD production. New Way’s Porous Media Technology® delivers controlled, noncontact glass handling capability for conveying, processing, and inspection applications. These modular components are available from stock and easy to install, level, plumb, maintain, replace, and change. New Way® is proud to offer the T-Series of air bars as the basis for all of your noncontact conveying motion needs. The T-Series is available in a range of sizes from 500mm length up through 1250mm, with this line specifically in an 80mm wide variant. The T-Series is an ideal solution for precision environments, where its noncontact motion eliminates contact induced defects on glass surfaces, and allows for rapid, precise conveyance with control over the material at all times. Our specification pages are available in U.S. and metric sizing so there’s no need to convert to your company’s internal standard. Additionally, we offer the engineering drawings for all of our T-Series bearings in both PDF and STEP format, allowing you to easily determine whether our precision-toleranced air bars are the right choice for you!
Category:
Units: US METRIC
Title Specifications
Size 1250mm1250mm
SKU S2280T1250 S2280T1250
Fly Height Example 0.0032 in80 microns
Input Pressure 21.0 psi145 kPa
Input Pressure Flow 64.8 SCFH28.02 NLPM
Input Vacuum 2.0 in H2050.8 mm H20
Input Vacuum Flow 43.8 SCFH18.94 NLPM
Substrate Fly Height Range 0.0008 - 0.0047 in20 - 120 microns
Fly Height Control 197 μ in±5 microns
Air Film Stiffness 0.21 lbs/μ in0.04 N/micron
Stability 0.2 μ in±5 nanometers
Transition Zone Air Bar Length 49.45 in1256 mm
Transition Zone Air Bar Width 3.94 in100 mm
Transition Zone Air Bar Height 1.69 in42.85 mm
Transition Zone Air Bar Weight 11.9 lbs5.39 kg
Housing Material/Finish Aluminum/AnodizedAluminum/Anodized
Porous Media Material CarbonCarbon
Bearing Face Surface Size - Carbon 3.94 x 49.21 in100 x 1250 mm
Bearing Face Surface Flatness 0.001 in0.025 mm
Air Supply Bottom-Mounted ManifoldBottom-Mounted Manifold
Vacuum Supply Bottom MountedBottom Mounted
Viable Pressure Range 0.5 - 40.0 psi3.48 - 275.79 kPa
Maximum Allowable Pressure Supply 40.0 psi275.79 kPa
Substrate Size up through Gen 10 and beyondup through Gen 10 and beyond
Substrate Thickness 0.0118 in and up0.3 mm and up
Maximum Substrate Speed 8.2 ft/sec2.5 m/sec
