| Title | Specifications |
|---|---|
| Size | 4.92 in125 mm |
| SKU | S1012501S1012501 |
| Input Pressure | 60 psi0.41 MPa |

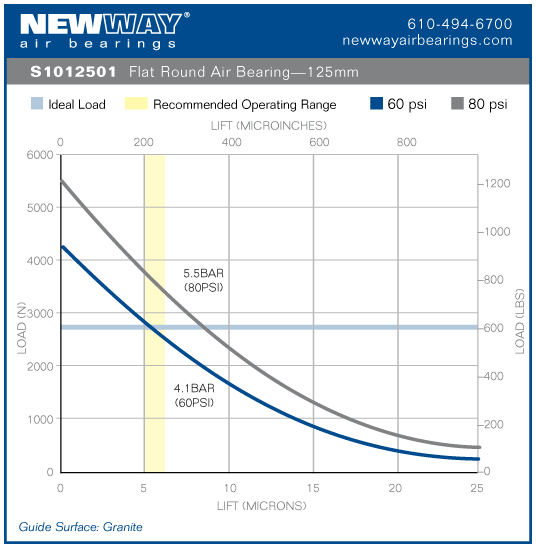

| Ideal Load | 624 lb2775 N |
| Stiffness | 1.5 lb/μin254 N/μm |
| No Load Flow | 8 - 12 SCFH3.46 - 5.19 NLPM |
| Fly Height | 0.0002 in5 microns |
| Bearing Size | 4.92 in125 mm |
| Bearing Height | 1.38 in35 mm |
| Bearing Weight | 2.27 lb1.03 kg |
| Housing Material/Finish | Aluminum/AnodizedAluminum/Anodized |
| Porous Media Material | CarbonCarbon |
| Bearing Face Surface Size - Carbon | 5.20 in132 mm |
| Flatness | 0.00002 in0.0005 mm |
| Ball Socket Size | 0.79 in20 mm |
| Pressure Port Thread | M5 x 0.8M5 x 0.8 |
| Viable Pressure Range | 60 - 80 psi0.414 - 0.552 MPa |
| Maximum Allowable Pressure Supply | 100 psi0.689 MPa |
| Resolution | InfiniteInfinite |
| Maximum Speed | 164 ft/s50 m/s |
| Common Guide Surfaces | Granite, hard-coated aluminum, ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum, ceramics, glass, stainless steel, plated steel |
| Suggested Guide Surface Finish | 16 RMS16 RMS |
