150mm flat round air bearing

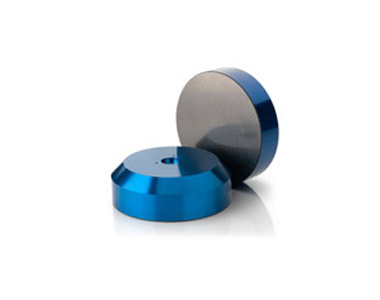

150mm Flat Round Air Bearing

New Way’s 150 mm Flat Round porous media air bearing line provides another option at the scale necessary for more significant load-carrying capability. These bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, replace or change. Contact New Way at 610.494.6700 to discuss your specific application’s needs.
Category:
Units: US METRIC
Title Specifications
Size 5.91 in150 mm
SKU S1015001S1015001
Input Pressure 60 psi0.41 MPa
Ideal Load 999 lb4444 N
Stiffness 2.0 lb/μin350 N/μm
No Load Flow 6.7 - 8.1 SCFH2.90 - 3.50 NLPM
Fly Height 0.0002 in5 microns
Bearing Size 5.91 in150 mm
Bearing Height 1.97 in50 mm
Bearing Weight 4.61 lb2.1 kg
Housing Material/Finish Aluminum/AnodizedAluminum/Anodized
Porous Media Material CarbonCarbon
Bearing Face Surface Size - Carbon 5.79 in149 mm
Flatness 0.00002 in0.0005 mm
Ball Socket Size 0.98 in25 mm
Pressure Port Thread M5 x 0.8M5 x 0.8
Viable Pressure Range 60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply 100 psi0.689 MPa
Resolution InfiniteInfinite
Maximum Speed 164 ft/s50 m/s
Common Guide Surfaces Granite, hard-coated aluminum, ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum, ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish 16 RMS16 RMS

Attachments:

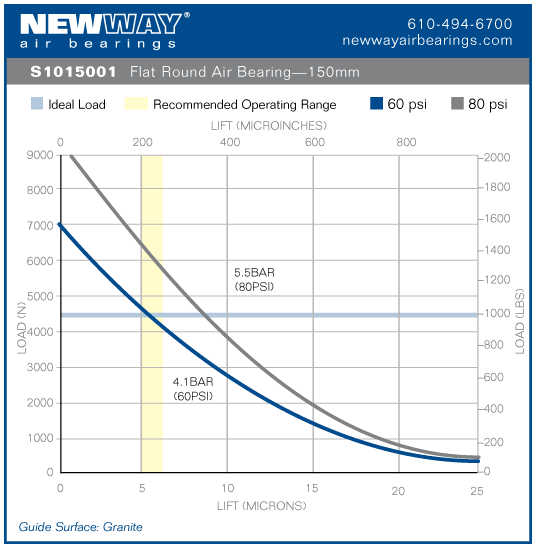

150mm flat round air bearing performance data

Attachments:

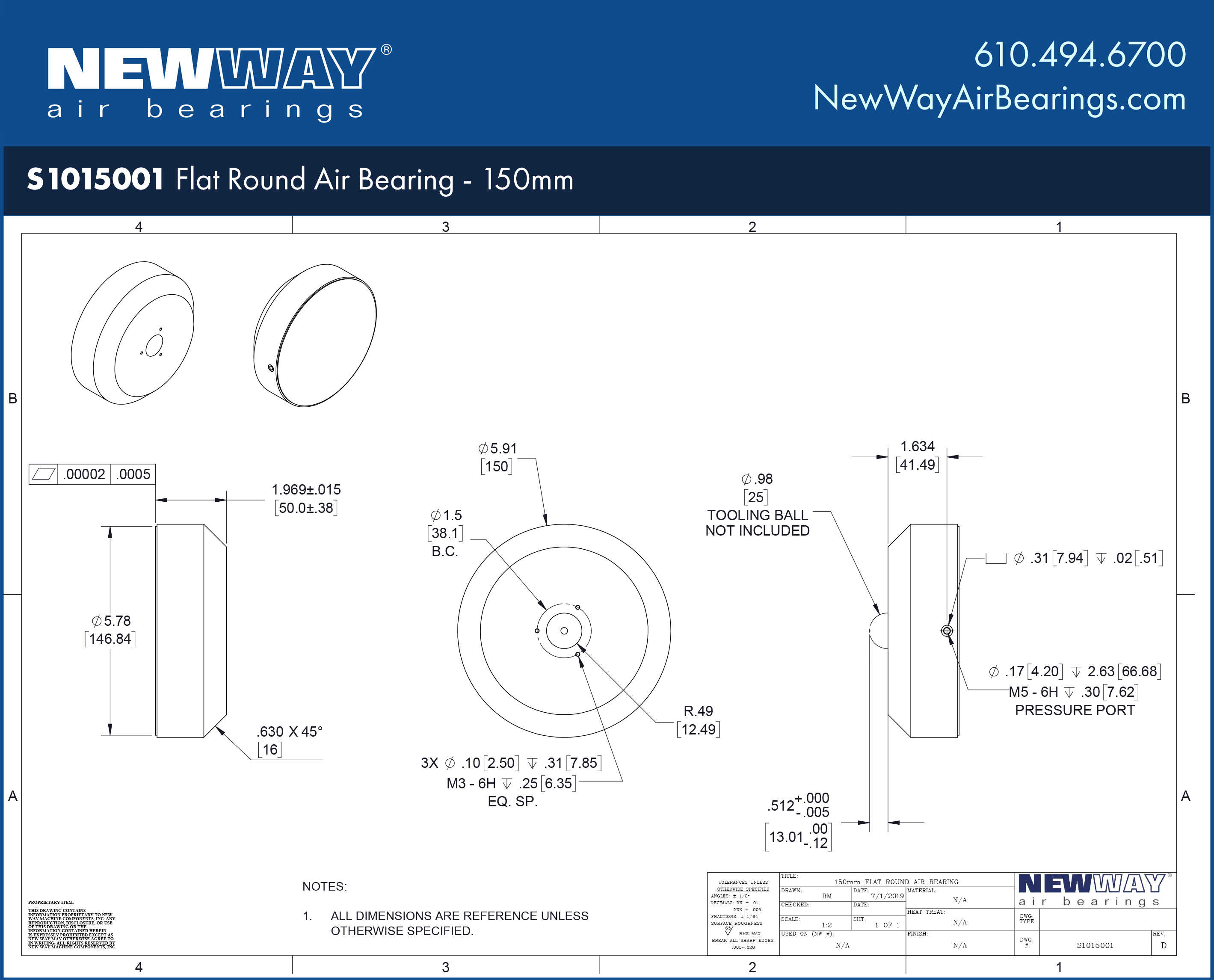

S1015001 Engineering Drawing
