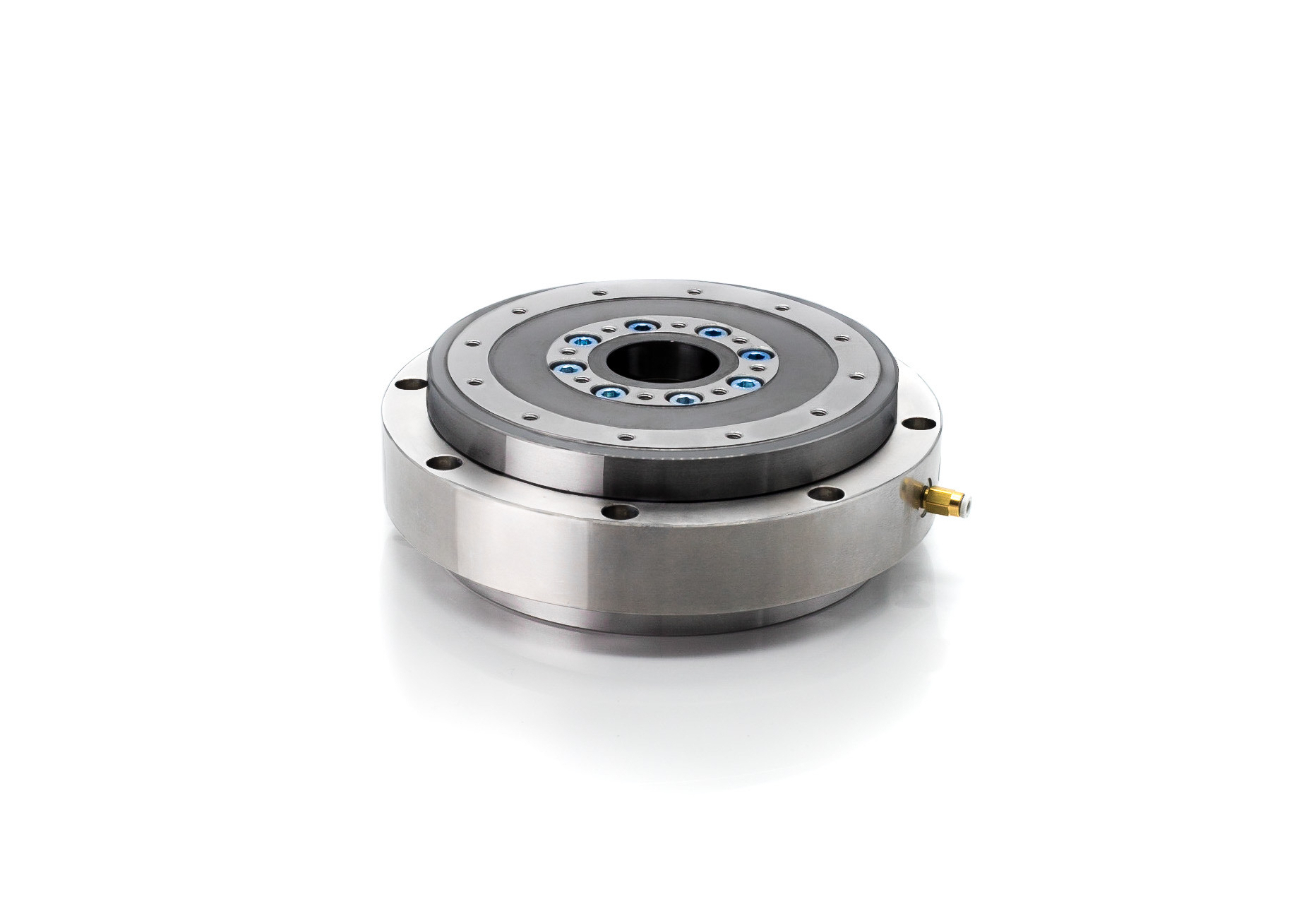

150mm “T” Series Air Spindle

The “T-Series” Spindles are an ideal assembly for building frictionless rotary motion, New Way spindles provide a fast, effective, precision out of the box solution. In either square or round stator configurations, this new product line gives you all the differential advantages of New Way porous media technology. For Specifications contact New Way Technical Support at: 610.364.3465.

Category: Air Spindles

Specification

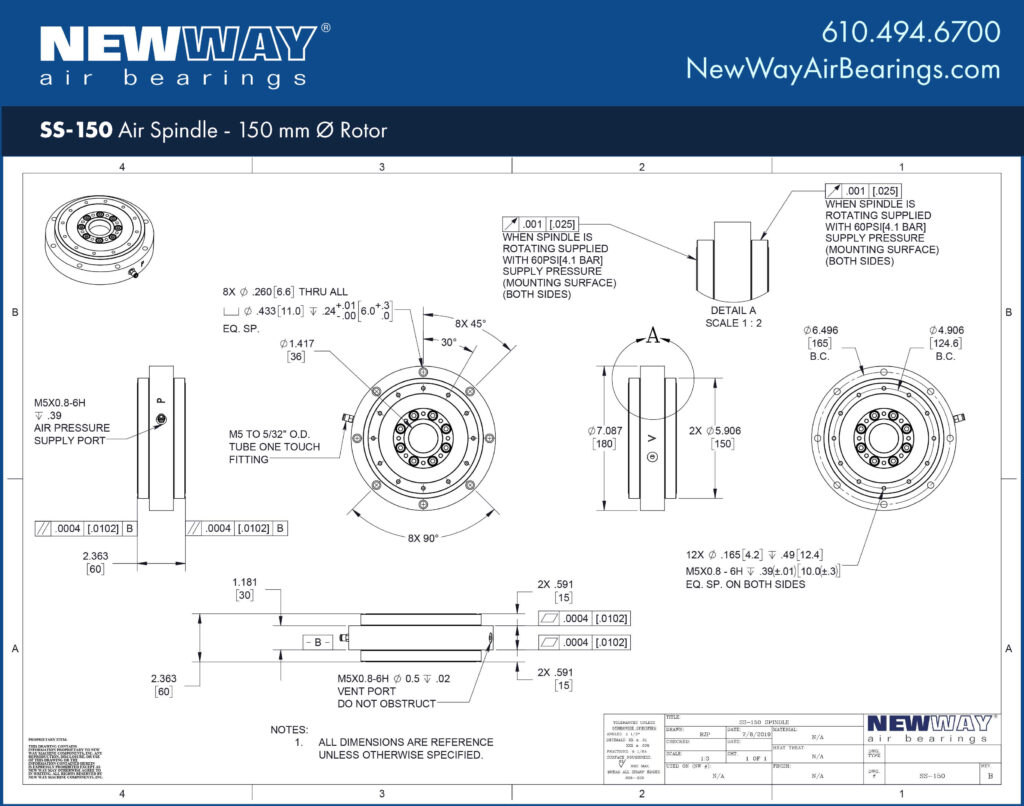

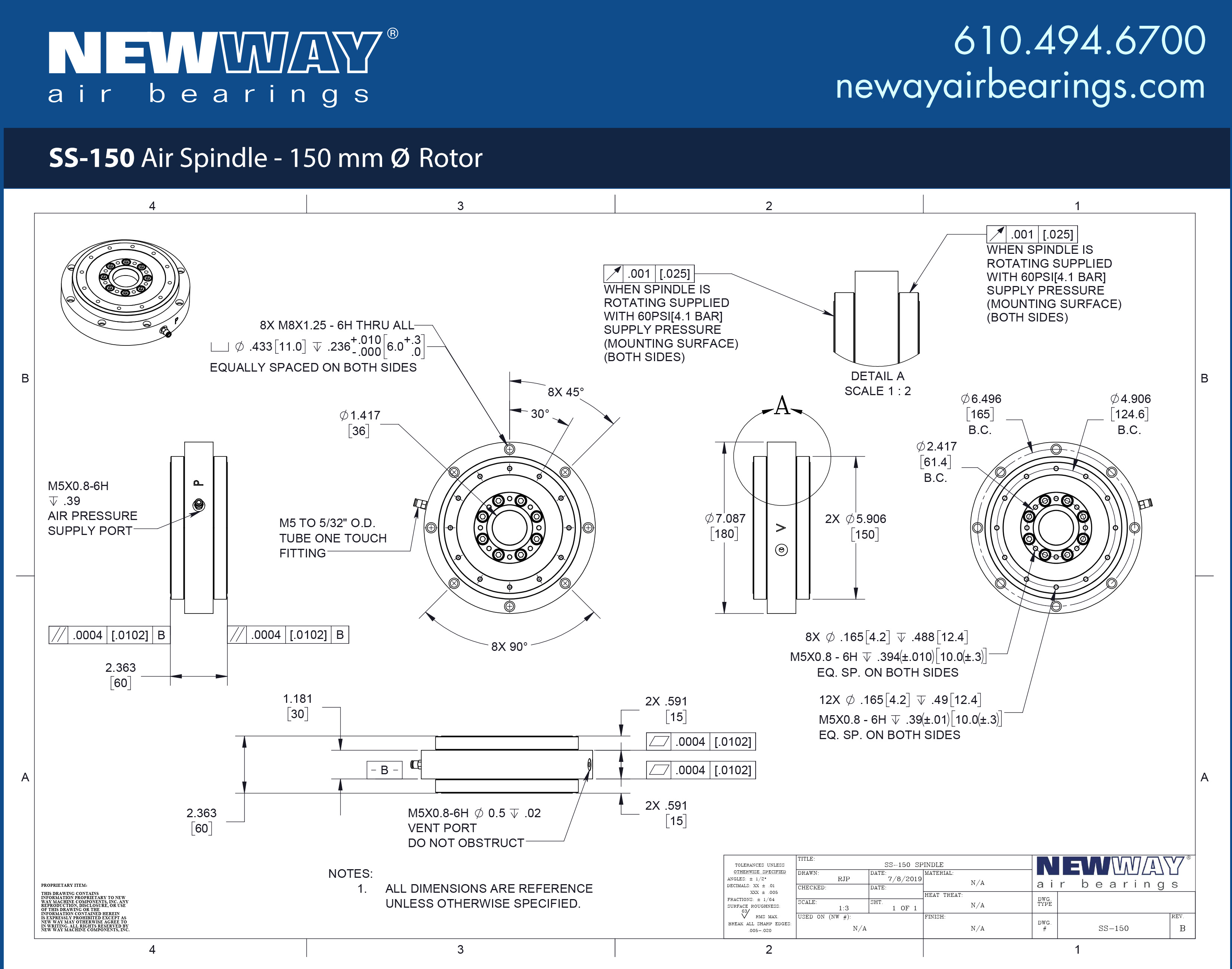

Engineering Drawings

Units: US METRIC

Title	Specifications
Size	5.9 in150 mm
SKU	SS-150SS-150
Input Pressure	60 psi0.41 MPa
Axial Load	312 lbs1387 (N)
Radial Load	89 lbs396 (N)
Axial and Radial Error Motion	3.9 μin0.1 (uM)
Max. Speed	6586 (RPM)6586 (RPM)
Average No Load Flow	51.0 SCFH22.05 NLPM
Moment Load	TO BE ADDED62.04 Nm
Radial Stiffness	TO BE ADDED55 N/um
Axial Stiffness	TO BE ADDED195 N/um
