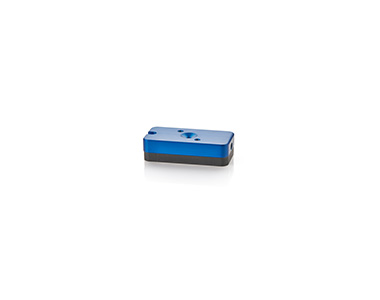

15mm x 30mm Flat Rectangular Air Bearing

Second smallest of the company's new small Flat Rectangular porous media air bearing line, the 15mm x 30mm size provides load-carrying capability with the flexibility to fit into the tightest designs. These new air bearings fill out New Way's Flat Rectangular product line, and compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, replace or change.
Category:
Units: US METRIC
Title Specifications
Bearing Size 0.6 x 1.2 in15 x 30 mm
SKU S121501S121501
Input Pressure 60 psi0.41 MPa
Ideal Load 14 lb62 N
Stiffness 0.04 lb/μin7 N/μm
No Load Flow 1.0 - 2.0 SCFH0.43 - 0.86 NLPM
Fly Height 0.0002 in5 microns
Bearing Height 0.39 in10 mm
Bearing Weight 0.02 lb8 g
Housing Material/Finish Aluminum/AnodizedAluminum/Anodized
Porous Media Material CarbonCarbon
Bearing Face Surface Size - Carbon 0.59 x 1.18 in15.01 x 30.00 mm
Flatness 0.00002 in0.0005 mm
Ball Socket Size 0.2 in6 mm
Pressure Port Thread M3 x 0.5M3 x 0.5
Viable Pressure Range 60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply 100 psi0.689 MPa
Resolution InfiniteInfinite
Maximum Speed 164.04 ft/s50 m/s
Common Guide Surfaces Granite, hard-coated aluminum, ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum, ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish 16 RMS16 RMS

Attachments:

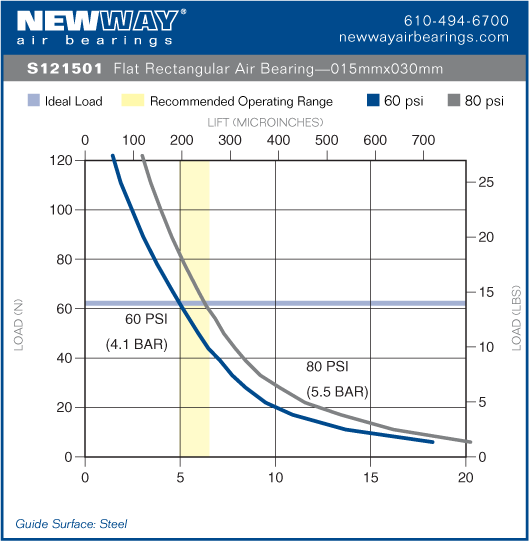

15mm x 30mm flat rectangular air bearing performance data

Attachments:

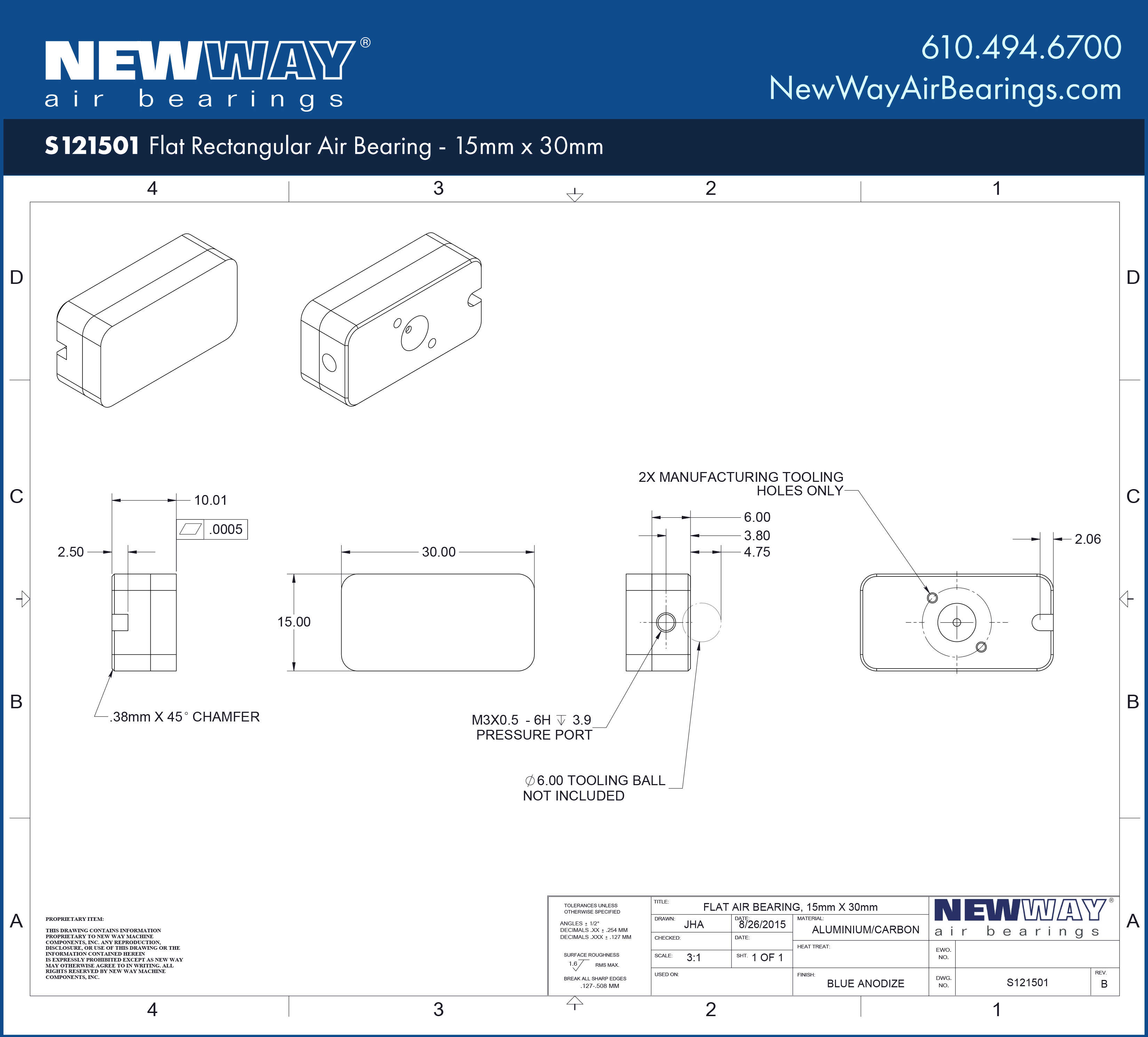

S121501
