2″ Slide for 1×1″ Guidebar – 4″ Travel End-Supported Air Slides

The smallest of New Way's end-supported air slides, this unit features a 2" long Truck, which provides accuracy in a tight footprint with 4" of travel. This standard New Way® integrated slide-and-guide assembly arrives ready for end-supported applications.
Category:
Units: US METRIC
Title Specifications
Part # S40-03050-025152S40-03050-025152
Input Pressure 60 psi0.41 MPa
Flow 4 SCFH1.73 NLPM
Maximum Load (Z) "Top Load" 25.99 lbs115.6 N
Maximum Load (Y) "Side Load" 25.99 lbs115.6 N
Accuracy “X” 10 Micro-Inches per Inch0.25 micron per 25mm
Accuracy “Y” 10 Micro-Inches per Inch0.25 micron per 25mm
Stiffness "Y" 262,500 lbs. /Inch45970 N/mm
Stiffness "Z" 262,500 lbs. /Inch45970 N/mm
Pitch Moment Max 11.2 lbs-in1.26 N-m
Roll Moment Max 10.4 lb-in1.18 N-m
Yaw Moment Max 11.2 lbs-in1.26 N-m
Rail Length 6 in152.4 mm
Travel Length 4 in101.6 mm

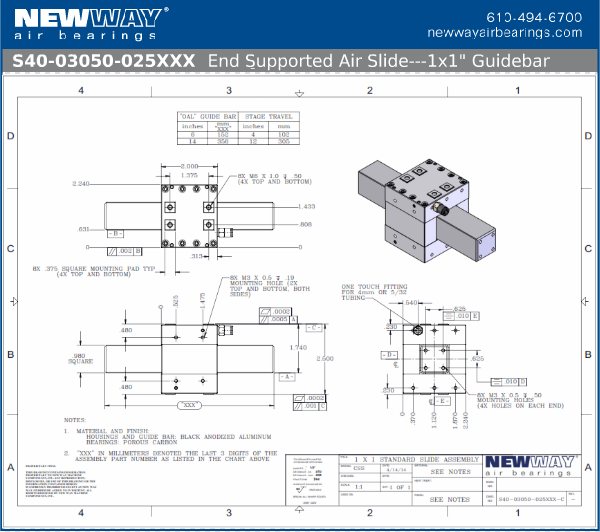

4in travel end supported air slides engineering drawings
