PA Series 2500mm x 45mm

S1345PA2500 is the largest size in the PA Rail series of Air Bars, with a 2,500mm length and a 45 mm width. Through the use of New Way’s Porous Media® Technology, these air bars provide an unparalleled solution to transporting Flat Panel Displays (FPD) and other glass substrates on a positively pressurized layer of air. If your application for PA Rails requires a length greater than the S1345PA2500 provides, don’t hesitate to contact New Way® for a custom length solution tailored to your uses. Contact us today to see how New Way can improve your glass or FPD (flat panel display) processes!
Category:
Units: US METRIC
Title Specifications
Size 2500mm2500mm
SKU S1345PA2500S1345PA2500
Fly Height 0.00314 - 0.0059 in80-150 microns
Input Pressure 21.0 psi145 kPa
Input Pressure Flow 265 SCFH114.6 NLPM
Input Vacuum N/A (no vacuum)N/A (no vacuum)
Input Vacuum Flow N/A (no vacuum)N/A (no vacuum)
Fly Height Range 0.00393 - 0.0059 in100-152 microns
Fly Height Control N/A (Conveyance only) N/A (Conveyance only)
Air Film Stiffness N/A (Conveyance only) N/A (Conveyance only)
Stability N/A (Conveyance only) N/A (Conveyance only)
Length 98.42 in2500 mm
Width 1.77 in45 mm
Height 3.67 in93.3 mm
Weight 319.4 lb/in3.68 kg/m
Bearing Surface Flatness 0.0059 in0.15 mm
Viable Pressure Range 0.5-40 psi3.48-275.79 kPa
Maximum Pressure Supply 40.0 psi275.70 kPa
Substrate Thickness 0.012 in and up0.3 mm and up
Maximum Substrate Speed 8.2 ft/s2.5 m/s

Attachments:

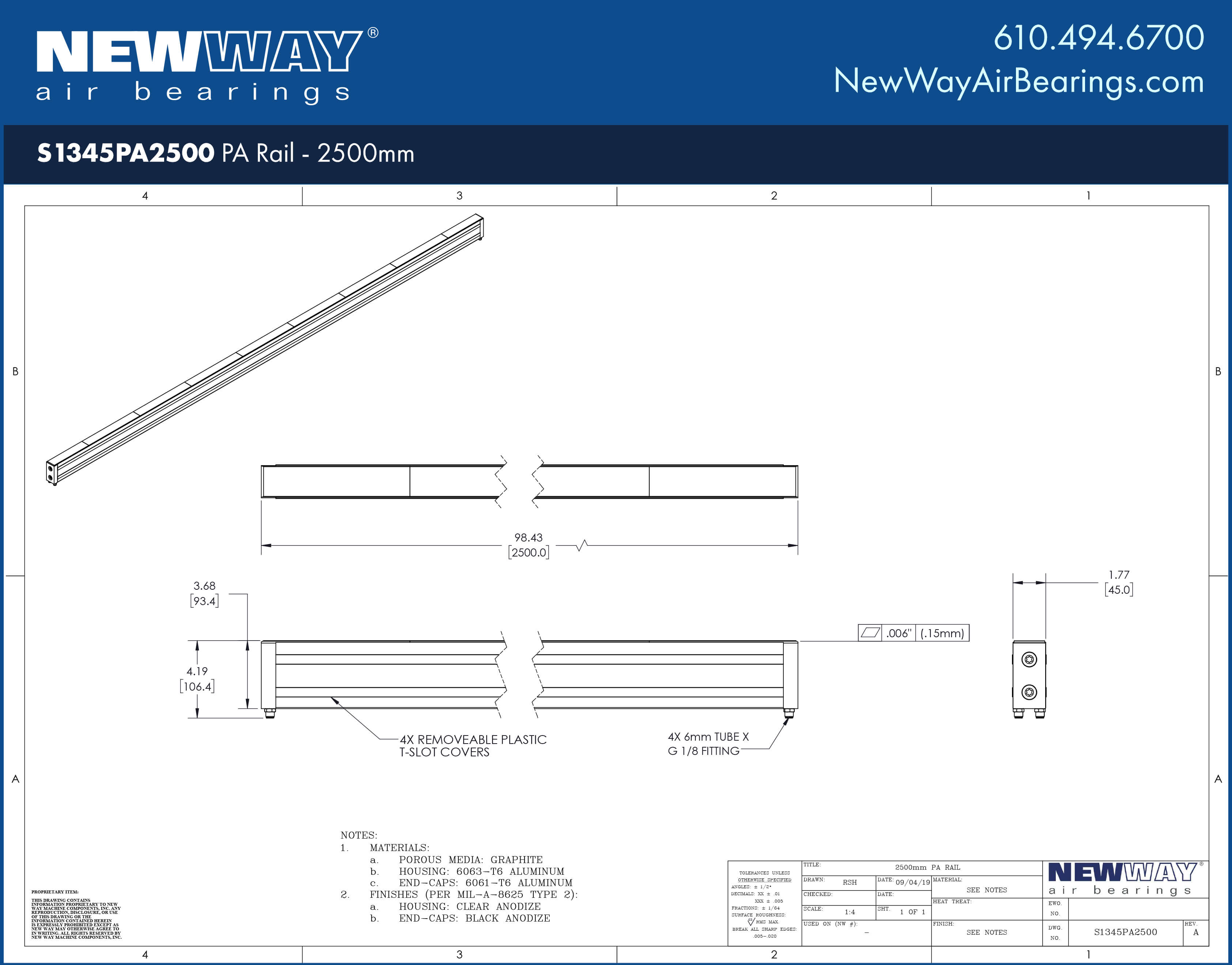

S1345PA2500 Engineering Drawing
