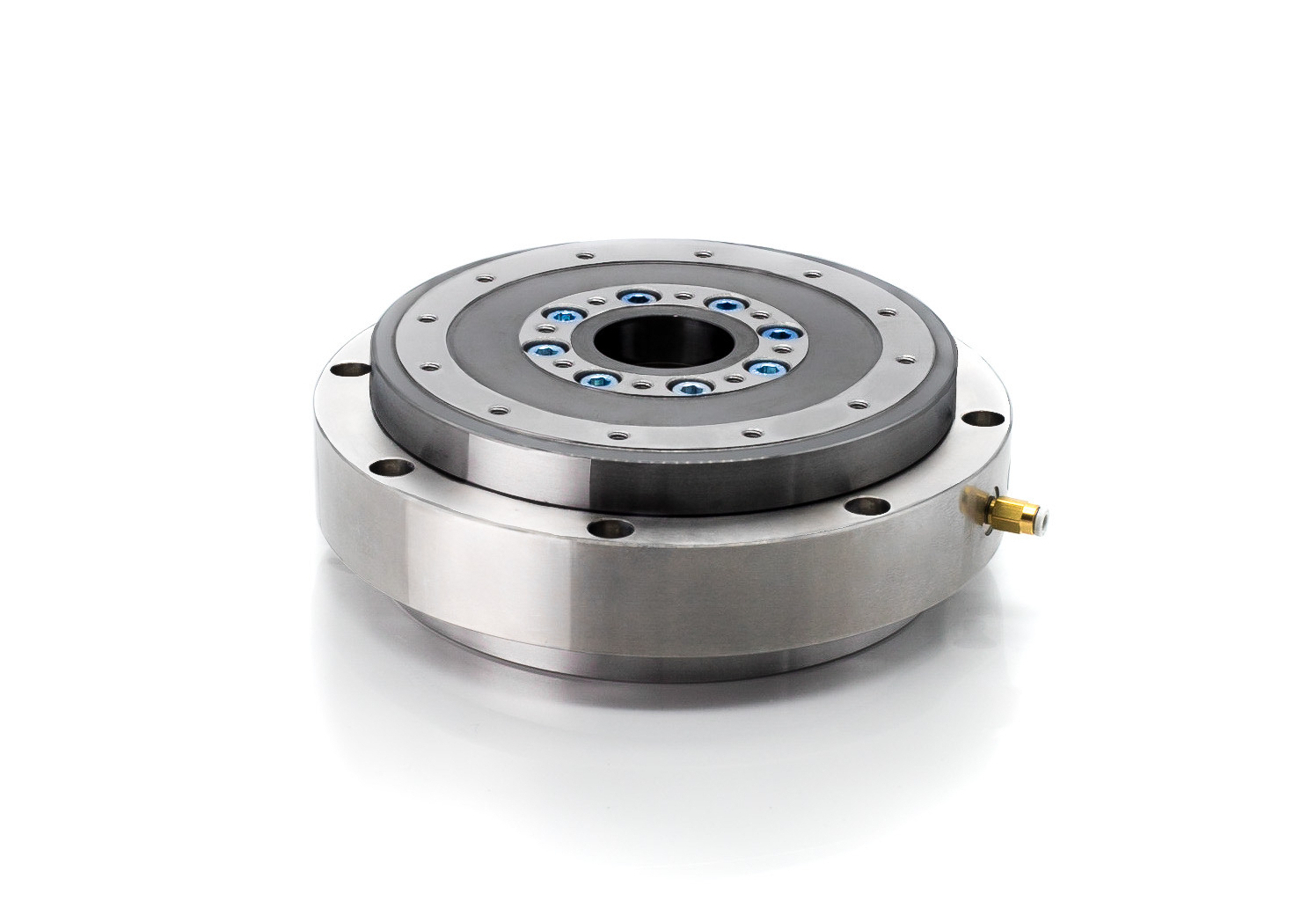

250mm “T” Series Air Spindle

The “T-Series” Spindles are an ideal assembly for building frictionless rotary motion, New Way spindles provide a fast, effective, precision out of the box solution. In either square or round stator configurations, this new product line gives you all the differential advantages of New Way porous media technology. For Specifications contact New Way Technical Support at: 610.364.3465.

Category: Air Spindles

Specification

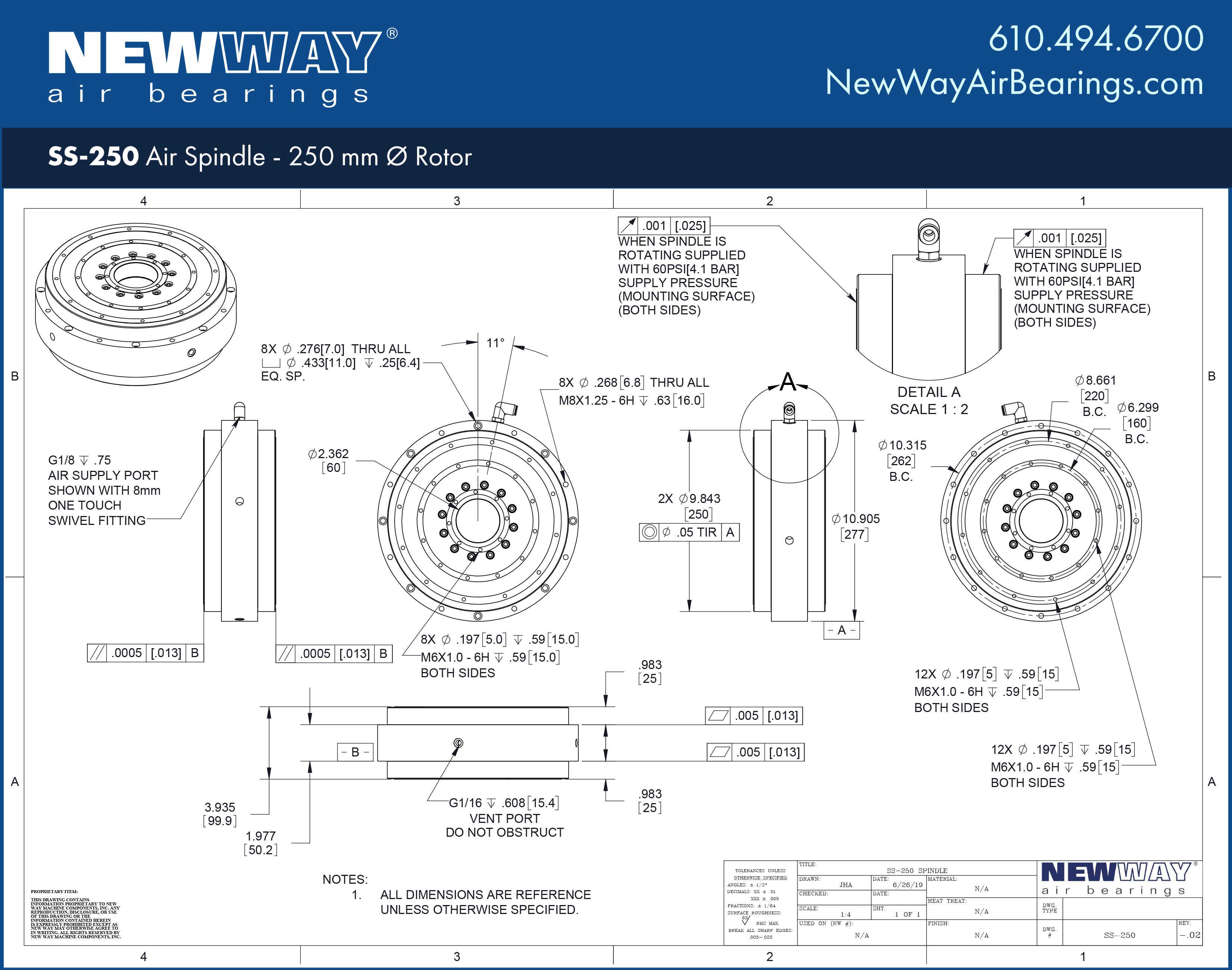

Engineering Drawings

Units: US METRIC

Title	Specifications
Size	9.8 in250 mm
SKU	SS-250SS-250
Input Pressure	60 psi0.41 MPa
Axial Load	952 lbs4233 (N)
Radial Load	249 lbs1108 (N)
Axial and Radial Error Motion	7.9 μin0.2 (uM)
Max. Speed	3979 (RPM)3979 (RPM)
Average No Load Flow	60.0 SCFH25.94 NLPM
Moment Load	TO BE ADDED320 Nm
Radial Stiffness	TO BE ADDED135 N/um
Axial Stiffness	TO BE ADDED505 N/um
