| Title | Specifications |
|---|---|
| Size | 25 mm25 mm |
| SKU | S302502S302502 |
| Input Pressure | 60 psi0.41 MPa |
| Radial Load Max | 42 lb187 N |
| Radial Stiffness | 0.19 lb/μin34 N/μm |
| Pitch Moment Max | 17 lb-in1.9 N-m |
| Pitch Stiffness | 47 lb-in/mil rad5.3 N-m/mil rad |
| Flowrate on Shaft | 9.50 - 12.60 SCFH4.11 - 5.45 NLPM |

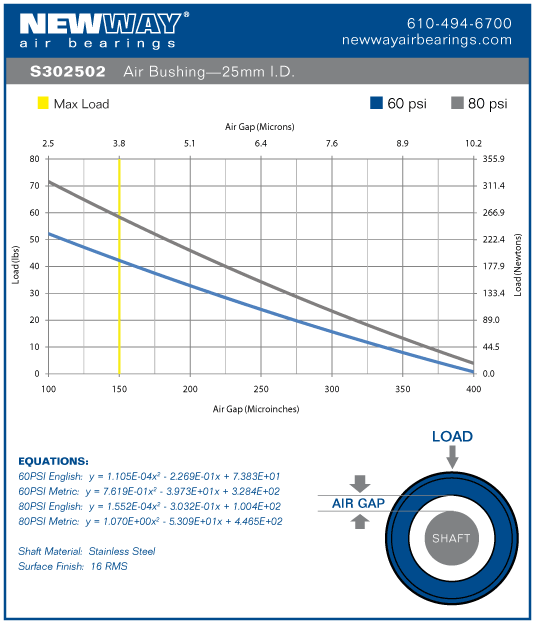

| Air Gap at maximum recommended load | 150 micro-inches4 microns |

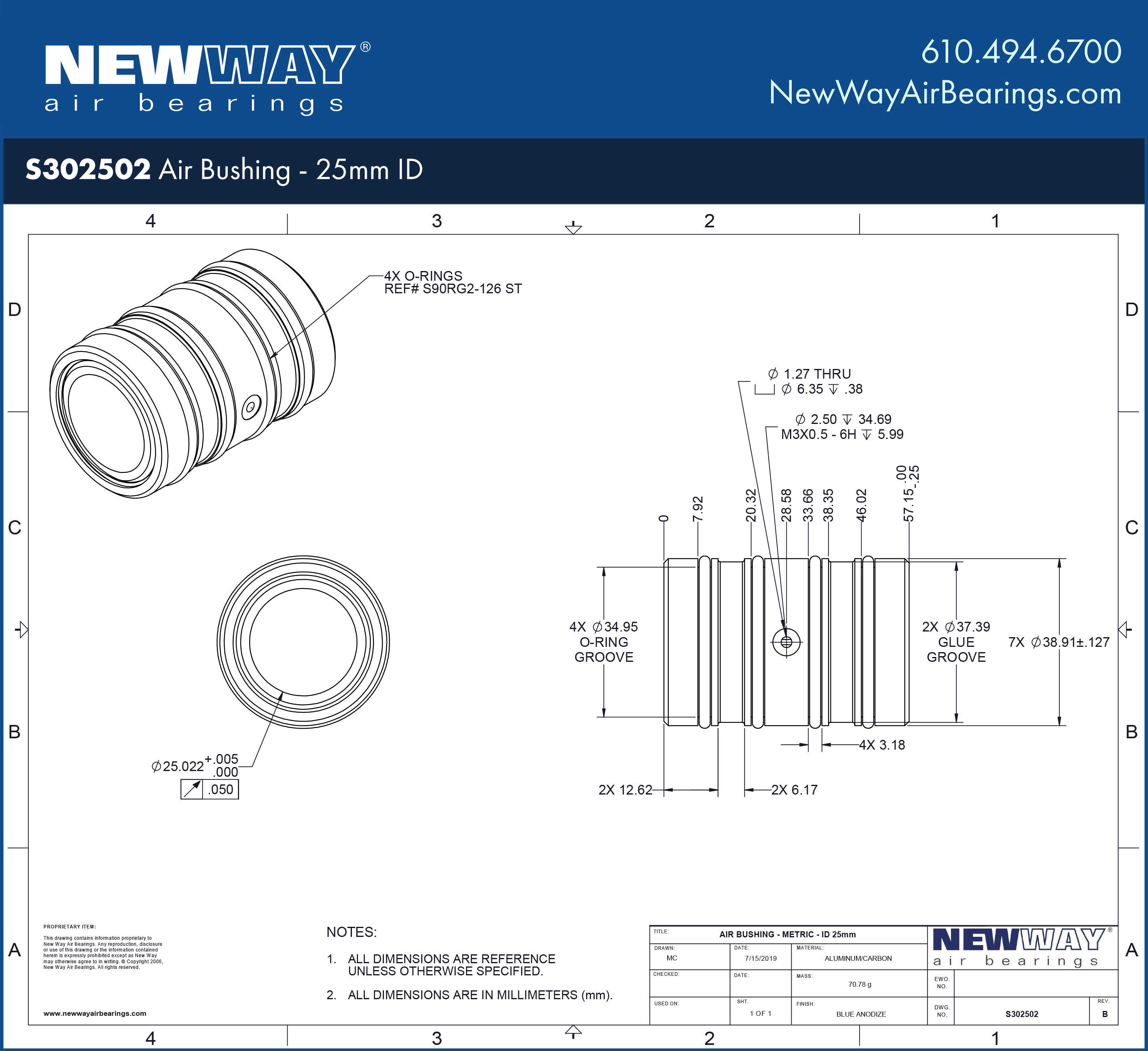

| Bushing Inside Diameter (ID) | 0.9843 in +.0002/-.00025.022 mm +0.005/-0.000 |
| Bushing Outside Diameter (OD) | 1.5 in39 mm |
| Bushing Length | 2.3 in57 mm |
| Bushing Weight | 3.0 oz83 g |
| Housing Material/Finish | Aluminum/AnodizedAluminum/Anodized |
| Porous Media Material | CarbonCarbon |
| Recommended Shaft Outside Diameter (OD) | 0.9843 in25.000 mm |
| Recommended Shaft Tolerance | -.0003/-.0008 in (g6)-7/-20 μm (g6) |
| Recommended Mounting Bore Diameter | 1.555 in +.005/-.00039.50 mm +.13/-.00 |
| Pressure Port Threads | M3 x 0.5M3 x 0.5 |
| Maximum Allowable Pressure Supply | 100 psi0.689 MPa |
| Bushing ID Speed | 40,000 rpm40,000 rpm |
| Resolution | InfiniteInfinite |
| Maximum Speed | 164.04 ft/s50 m/s |
| Common Shaft Materials | Anodized aluminum, stainless steel, nickel plated steel, ceramics, glassAnodized aluminum, stainless steel, nickel plated steel, ceramics, glass |
