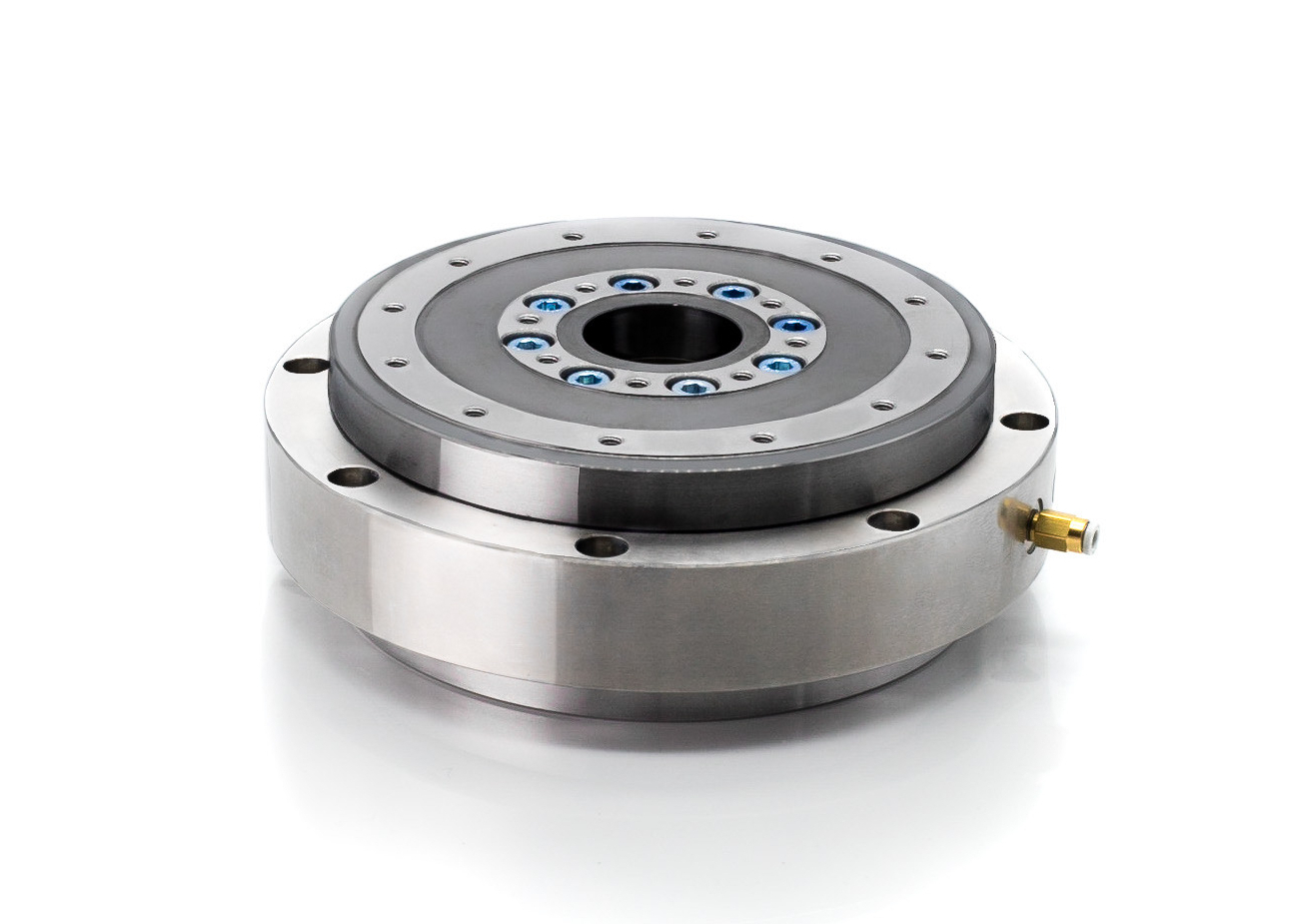

375mm “T” Series Air Spindle

The “T-Series” Spindles are an ideal assembly for building frictionless rotary motion, New Way spindles provide a fast, effective, precision out of the box solution. In either square or round stator configurations, this new product line gives you all the differential advantages of New Way porous media technology. For Specifications contact New Way Technical Support at: 610-364-3465

Category: Air Spindles

Specification

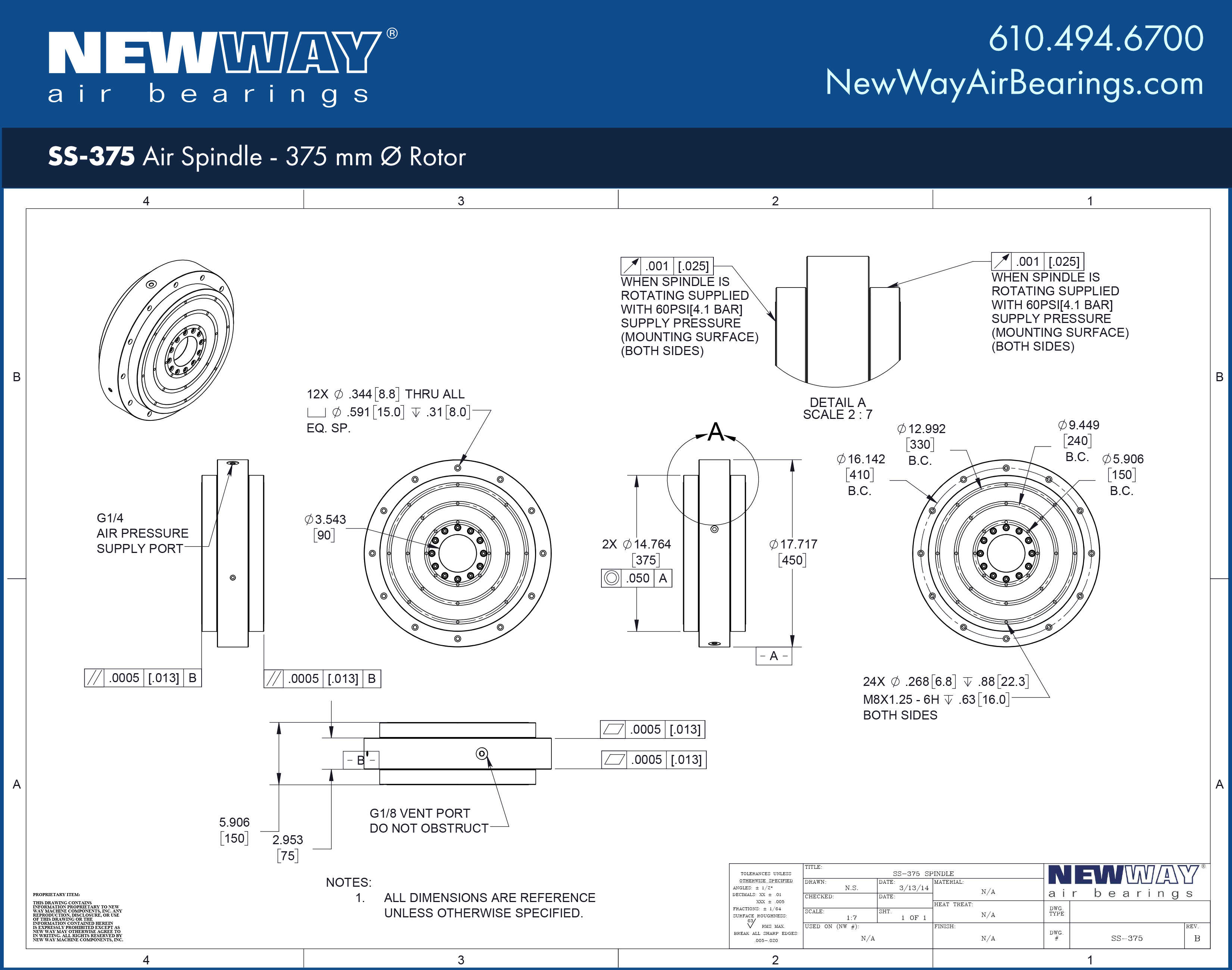

Engineering Drawings

Units: US METRIC

Title	Specifications
Size	14.8 in375 mm
SKU	SS-375SS-375
Input Pressure	60 psi0.41 MPa
Axial Load	2373 lbs10554 (N)
Radial Load	563 lbs2502 (N)
Axial and Radial Error Motion	15.7 μin0.4 (uM)
Max. Speed	2616 (RPM)2616 (RPM)
Average No Load Flow	100.0 SCFH43.24 NLPM
Moment Load	TO BE ADDED1,338 Nm
Radial Stiffness	TO BE ADDED265 N/um
Axial Stiffness	TO BE ADDED1,375 N/um
