40mm flat round air bearing

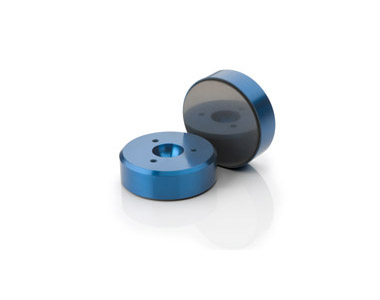

40mm Flat Round Air Bearing

The second smallest of the New Way Flat Round porous media air bearing line, the 40mm size provides excellent load-carrying capability with the flexibility to fit into tight designs. These bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, replace or change. Contact New Way at 610.494.6700 to discuss your specific application’s needs.
Category:
Units: US METRIC
Title Specifications
Size 1.57 in40 mm
SKU S104001S104001
Input Pressure 60 psi0.41 MPa
Ideal Load 50 lb222 N
Stiffness 0.16 lb/μin28 N/μm
No Load Flow 2.2 - 2.8 SCFH0.95 - 1.21 NLPM
Fly Height 0.0002 in5 microns
Bearing Size 1.57 in40 mm
Bearing Height 0.51 in13 mm
Bearing Weight 0.08 lb0.035 kg
Housing Material/Finish Aluminum/AnodizedAluminum/Anodized
Porous Media Material CarbonCarbon
Bearing Face Surface Size - Carbon 1.5 in38 mm
Flatness 0.00002 in0.0005 mm
Ball Socket Size 0.51 in13 mm
Pressure Port Thread M5 x 0.8M5 x 0.8
Viable Pressure Range 60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply 100 psi0.689 MPa
Resolution InfiniteInfinite
Maximum Speed 164 ft/s50 m/s
Common Guide Surfaces Granite, hard-coated aluminum, ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum, ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish 16 RMS16 RMS

Attachments:

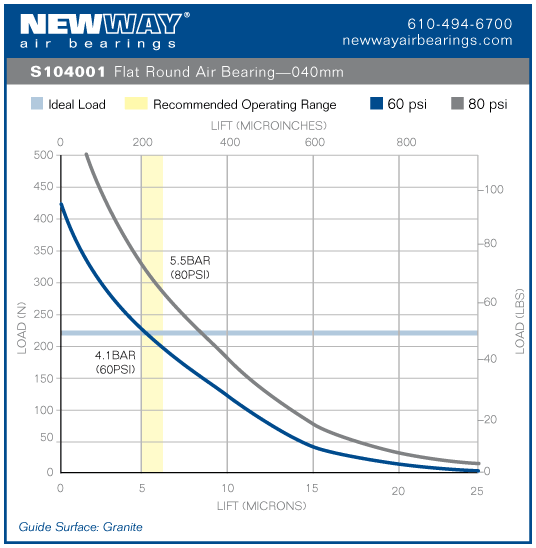

40mm flat round air bearing performance data

Attachments:

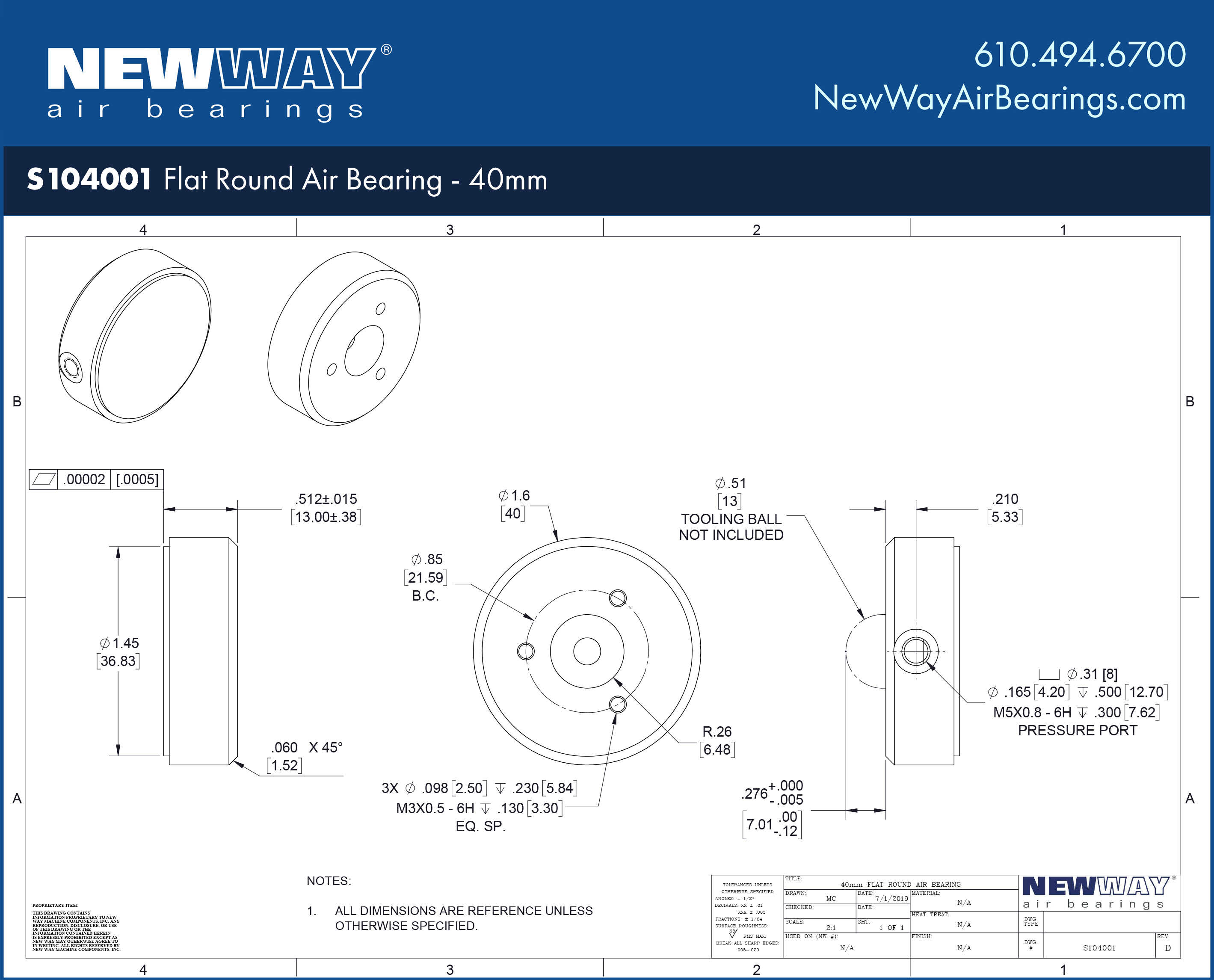

S104001 Engineering Drawing
