5″ Slide for 2×2″ Guidebar – 12″ Travel End-Supported Air Slides

The mid-range of New Way's end-supported air slides, this unit features a 5" long Truck, which provides integrated accuracy with a 2" x 2" guidebar over 12" of travel. This standard New Way® integrated slide-and-guide assembly arrives ready for end-supported applications.
Category:
Units: US METRIC
Title Specifications
Part # S40-03125-050432S40-03125-050432
Input Pressure 60 psi0.41 MPa
Flow 14.8 SCFH6.40 NLPM
Maximum Load (Z) "Top Load" 114.4 lbs508.7N
Maximum Load (Y) "Side Load" 114.4 lbs508.7N
Accuracy “X” 10 Micro-Inches per Inch0.25 micron per 25MM
Accuracy “Y” 10 Micro-Inches per Inch0.25 micron per 25MM
Stiffness "Y" 1,524,900 lb/in267,050 N/mm
Stiffness "Z" 1,524,900 Lbs/in267,050 N/mm
Pitch Moment Max 113.3 lb-in12.8 N-m
Roll Moment Max 99.11 lb-in11.2 N-m
Yaw Moment Max 113.3 lb-in12.8 N-m
Rail Length 17 in431.8 mm
Travel Length 12 in304.8 mm

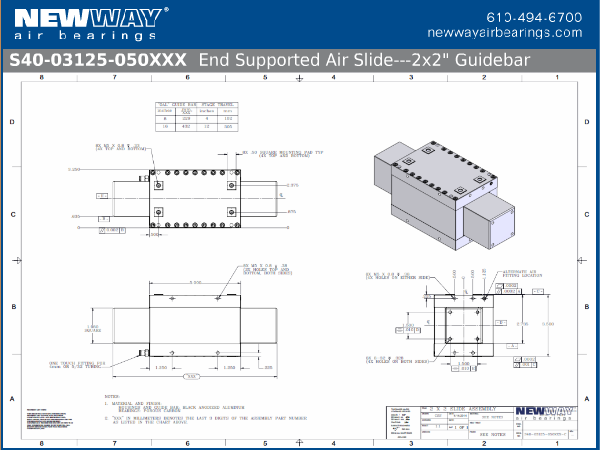

12in travel end supported air slides engineering drawings
