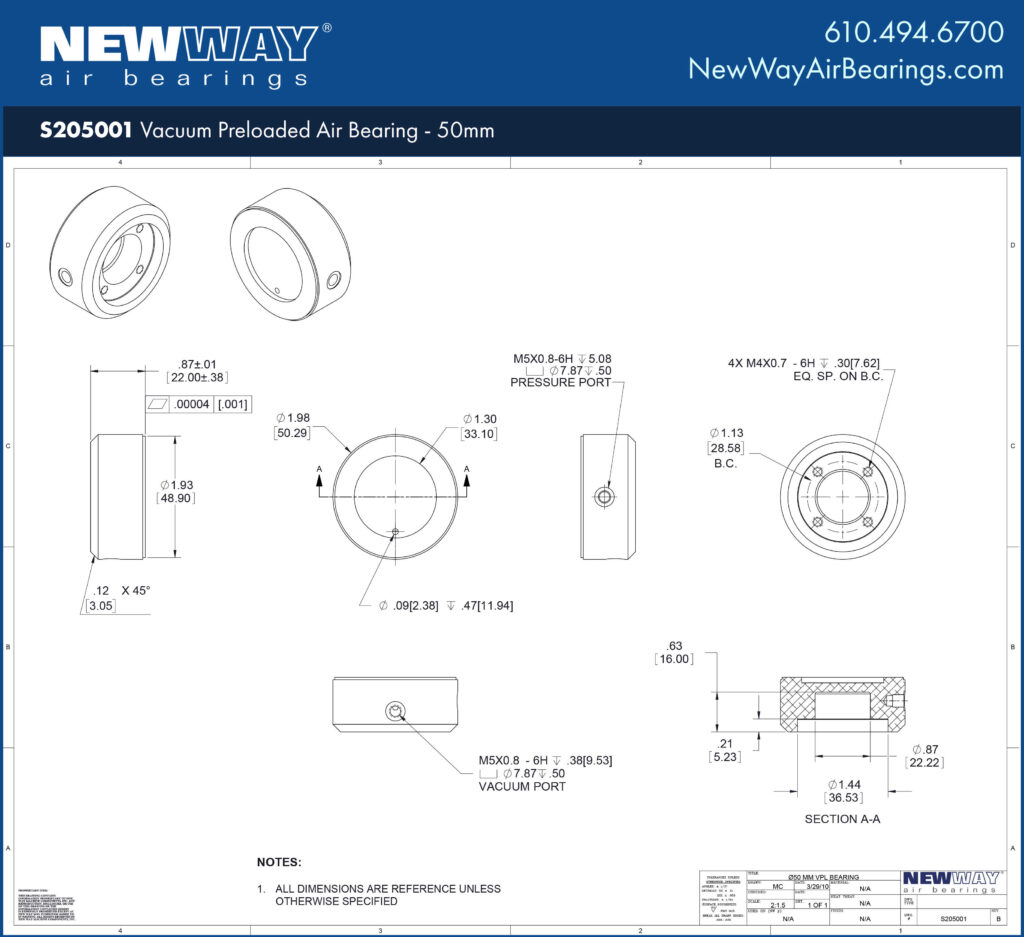

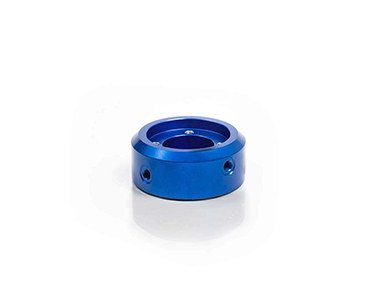

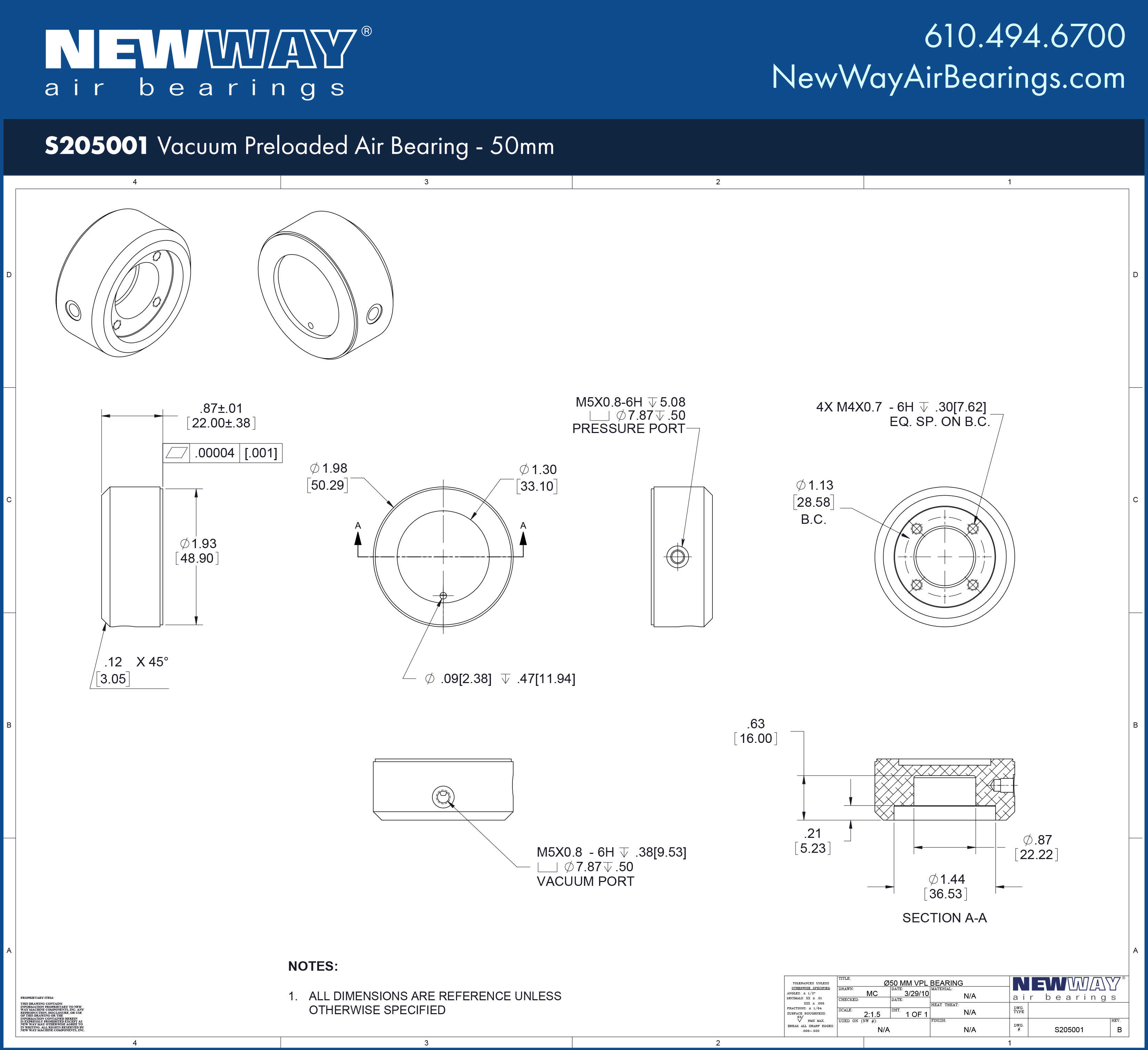

| Title | Specifications |
|---|---|
| Size | 2.0 in50 mm |
| SKU | S205001S205001 |
| Input Pressure | 60 psi0.41 MPa |
| Input Vacuum | 15 in Hg15 in Hg |
| Ideal Load | 10 lbs45 N |

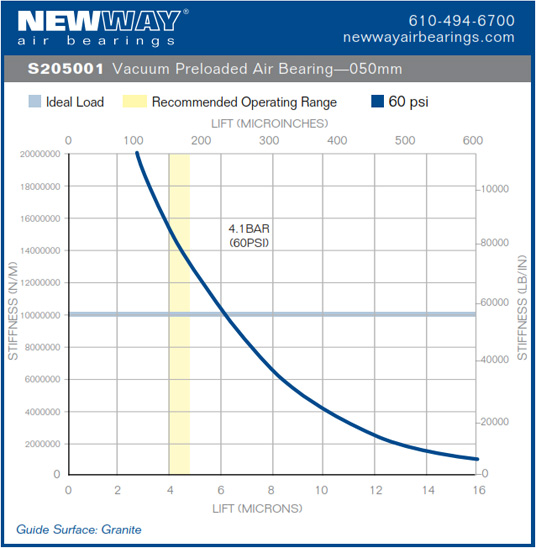

| Stiffness | 0.07 lbs/uin13 N/micron |
| Maximum Hold-Down Force at 50.7kPa | 16.4 lb73 N |
| Flow | 2.25 SCFH0.97 NLPM |
| Fly Height | 197 uin5 microns |
| Bearing Size | 2.0 in50 mm |
| Bearing Height | 0.866 in22 mm |
| Bearing Weight | 2.6 oz73 grams |
| Housing Material/Finish | Aluminum/AnodizedAluminum/Anodized |
| Porous Media Material | CarbonCarbon |
| Bearing Face Surface Size - Carbon | 1.3 in ID x 1.9 in OD33.1mm ID x 48.9mm OD |
| Flatness | 0.00004 in0.001 mm |
| Mounting | FlexureFlexure |
| Pressure Port | M5M5 |
| Vacuum Port | M5M5 |
| Viable Pressure Range | 60 - 80 psi0.414 - 0.552 MPa |
| Maximum Allowable Pressure Supply | 100 psi0.689 MPa |
| Resolution | InfiniteInfinite |
| Maximum Speed | 164 ft/s50m/sec |
| Common Guide Surfaces | Granite, hard-coated aluminum, ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum, ceramics, glass, stainless steel, plated steel |
| Suggested Guide Surface Finish | 16 RMS16 RMS |
