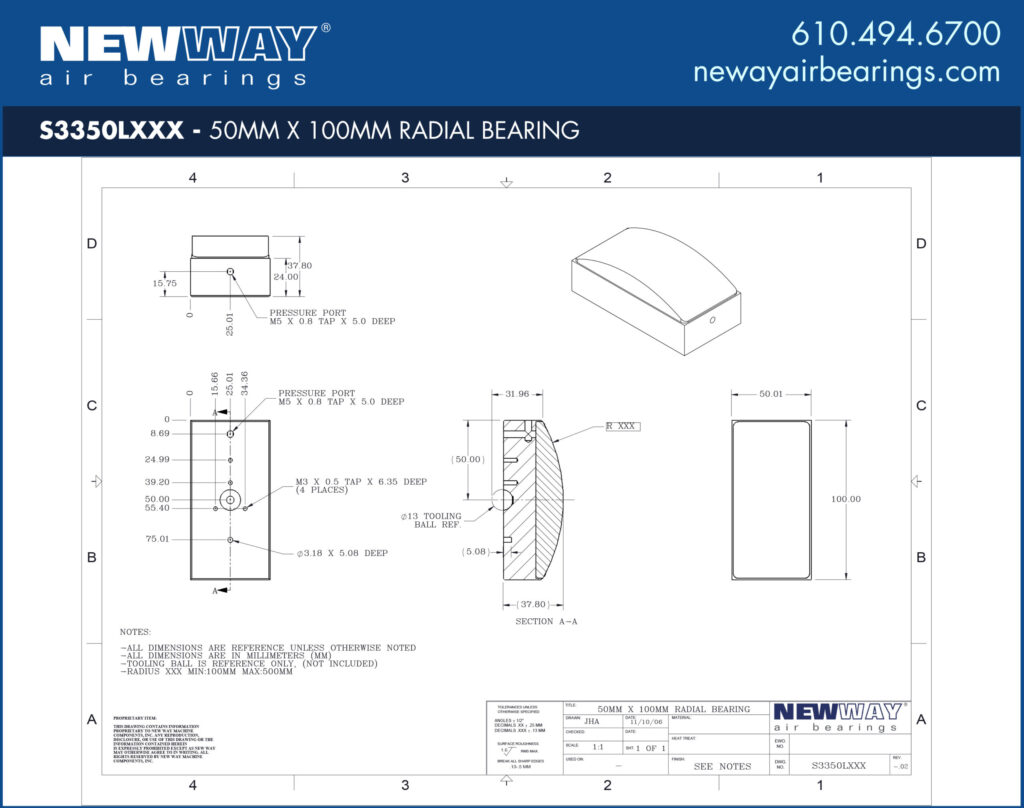

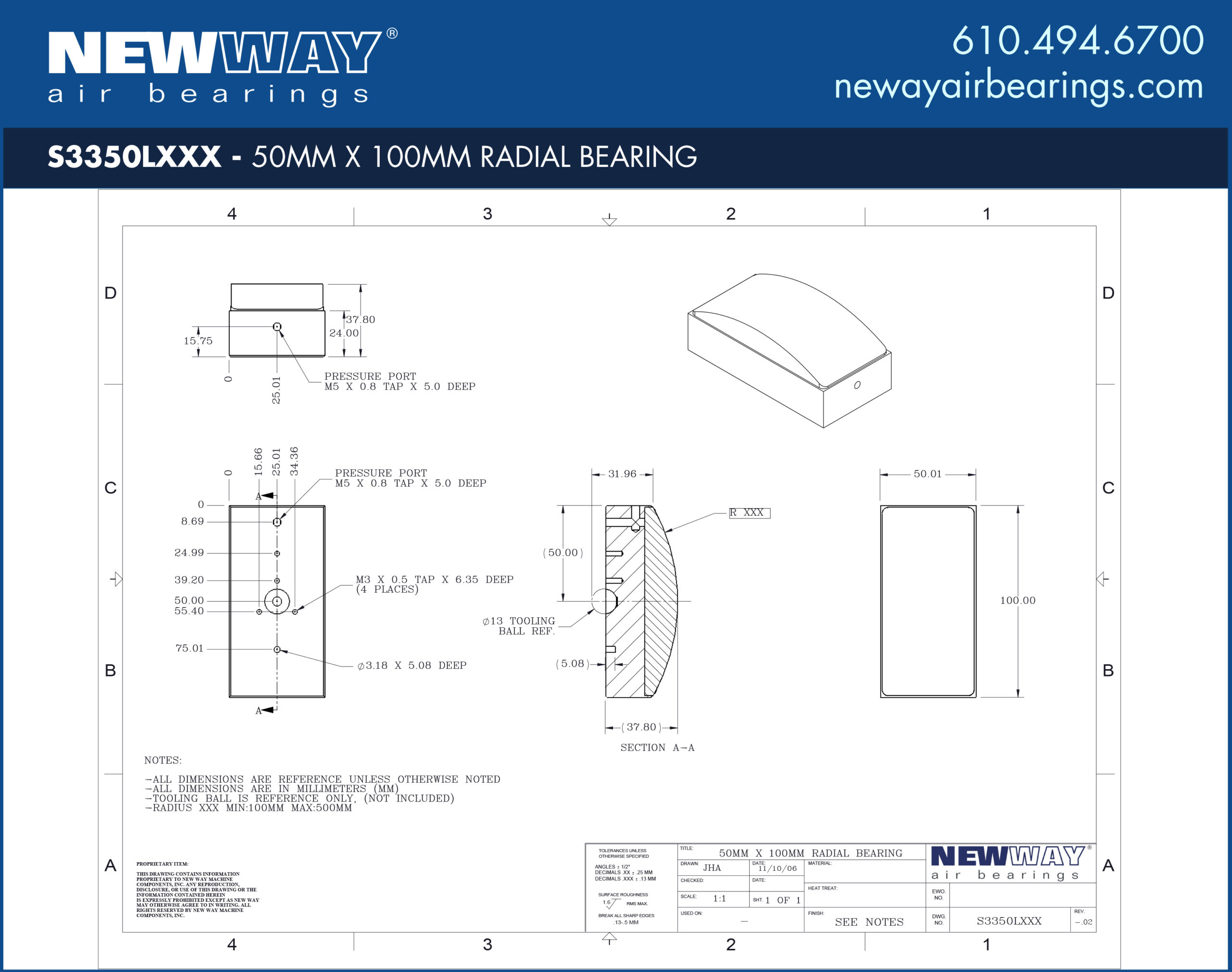

50mm x 100mm Radial Air Bearings Convex L Profile

Fifth-largest of the New Way Convex Radial Air Bearing product line, the 50mm x 100mm size provides a good balance of scale and load-carrying capability. For rotary or linear motion, these radial air bearings compare favorably with conventional rolling element bearings across virtually every performance characteristic. They are also easy to apply, maintain, and change.
Category:
Units: US METRIC
Title Specifications
Size 50 x 100 mm50 x 100 mm
SKU S3350L***S3350L***
Input Pressure 60 psi0.41 MPa
Ideal Load at 5um Fly Height 180 lb801 N
Stiffness 0.63 lb/μin110 N/μm
Flow 6.0 - 8.0 SCFH2.59 - 3.46 NLPM
Fly Height 0.0002 in5 microns
Bearing Size 1.97 x 3.94 in50 x 100 mm
Bearing Height 0.98 in25 mm
Bearing Weight 0.65 lb295 g
Housing Material/Finish Aluminum/AnodizedAluminum/Anodized
Porous Media Material CarbonCarbon
Ball Socket Size 13 mm13 mm
Pressure Port Thread M5 x 0.8M5 x 0.8
Viable Pressure Range 60 - 80 psi0.414 - 0.552 MPa
Maximum Allowable Pressure Supply 100 psi0.689 MPa
Resolution InfiniteInfinite
Maximum Speed 164.04 ft/s50 m/s
Common Guide Surfaces Granite, hard-coated aluminum,ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum,ceramics, glass, stainless steel, plated steel
Suggested Guide Surface Finish 16 RMS16 RMS
