| Title | Specifications |
|---|---|
| Size | 75 mm75 mm |
| SKU | S307502S307502 |
| Input Pressure | 60 psi0.41 MPa |
| Radial Load Max | 280 lb1245 N |
| Radial Stiffness | 0.91 lb/μin159 N/μm |
| Pitch Moment Max | 63 lb-in7.1 N-m |
| Pitch Stiffness | 275 lb-in/mil rad31 N-m/mil rad |
| Flowrate on Shaft | 23.00 - 32.00 SCFH9.94 - 13.84 NLPM |

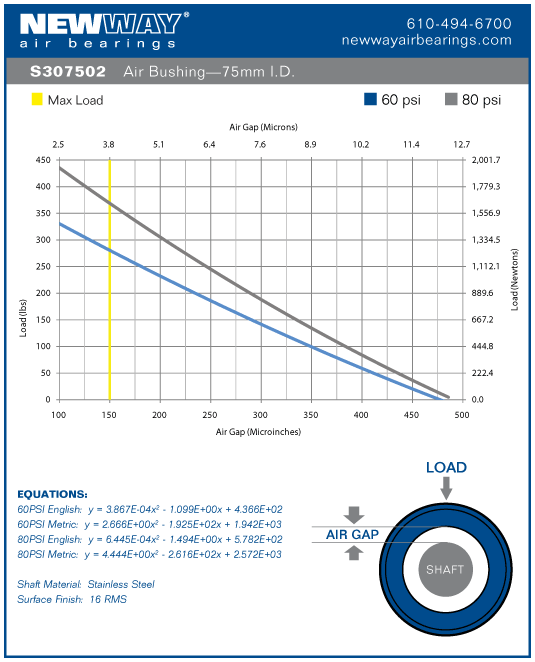

| Air Gap at maximum recommended load | 150 micro-inches4 microns |

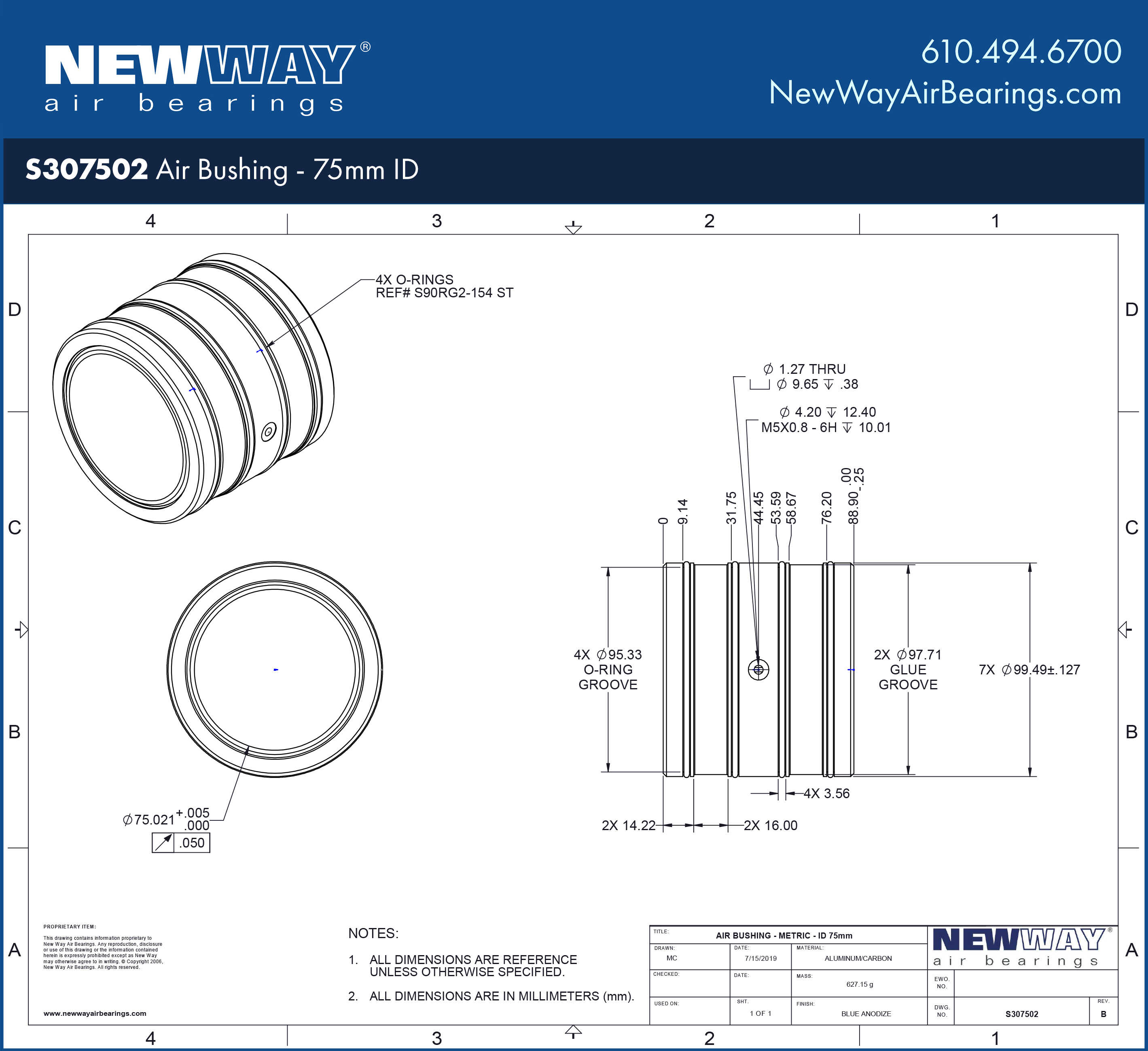

| Bushing Inside Diameter (ID) | 2.9528 in +.0002/-.00075.020 mm +.005/-.000 |
| Bushing Outside Diameter (OD) | 3.9 in100 mm |
| Bushing Length | 3.5 in89 mm |
| Bushing Weight | 22 oz623 g |
| Housing Material/Finish | Aluminum/AnodizedAluminum/Anodized |
| Porous Media Material | CarbonCarbon |
| Recommended Shaft Outside Diameter (OD) | 2.9528 in75.000 mm |
| Recommended Shaft Tolerance | -.0004/-.0011 in (g6)-10/-29 μm (g6) |
| Recommended Mounting Bore Diameter | 3.937 in +.003/-.000100.00 mm +.08/-.00 |
| Pressure Port Threads | M5 x 0.8M5 x 0.8 |
| Maximum Allowable Pressure Supply | 100 psi0.689 MPa |
| Bushing ID Speed | 13,250 rpm13,250 rpm |
| Resolution | InfiniteInfinite |
| Maximum Speed | 164.04 ft/s50 m/s |
| Common Shaft Materials | Anodized aluminum, stainless steel, nickel plated steel, ceramics, glassAnodized aluminum, stainless steel, nickel plated steel, ceramics, glass |
