| Title | Specifications |
|---|---|
| Size | 3.0 in75mm |
| SKU | S207501S207501 |
| Input Pressure | 60 psi0.41 MPa |
| Input Vacuum | 15 in Hg15 in Hg |
| Ideal Load | 25 lbs110 N |

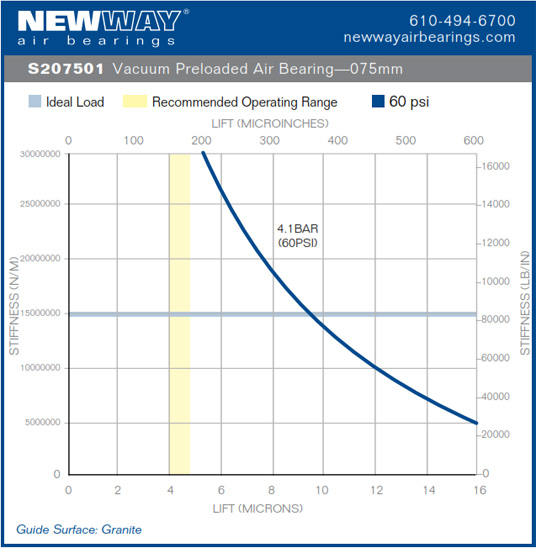

| Stiffness | 0.17 lbs/uin29 N/micron |
| Maximum Hold-Down Force at 50.7kPa | 40.5 lb180 N |
| Flow | 2.92 SCFH1.26 NLPM |
| Fly Height | 197 uin5 microns |

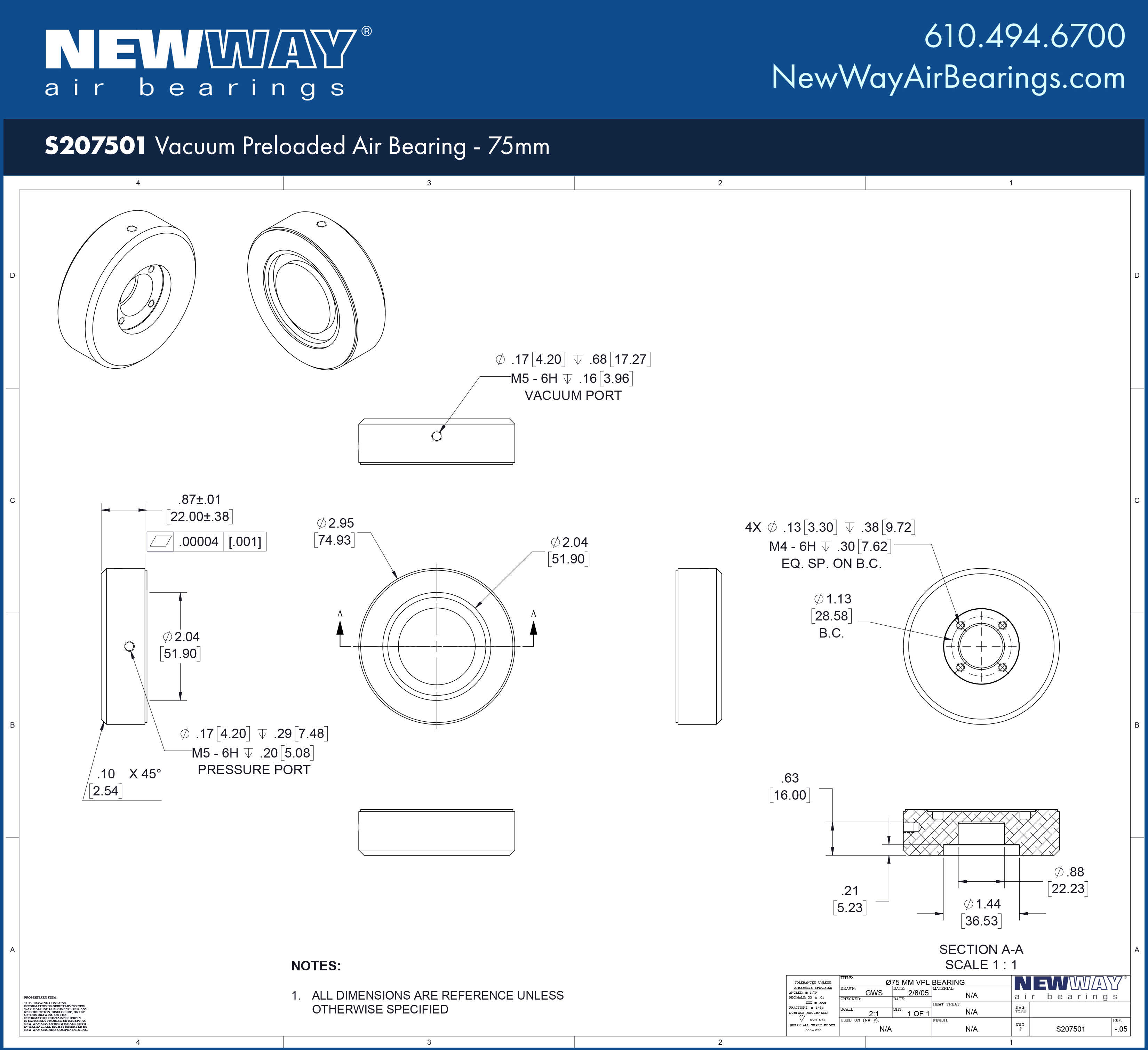

| Bearing Size | 3.0 in75mm |
| Bearing Height | 0.866 in22 mm |
| Bearing Weight | 7.2 oz203 grams |
| Housing Material/Finish | Aluminum/AnodizedAluminum/Anodized |
| Porous Media Material | CarbonCarbon |
| Bearing Face Surface Size - Carbon | 2.0 in ID x 2.9 in OD51.9mm ID x 73.1mm OD |
| Flatness | 0.00004 in0.001 mm |
| Mounting | FlexureFlexure |
| Pressure Port | M5M5 |
| Vacuum Port | M5M5 |
| Viable Pressure Range | 60 - 80 psi0.414 - 0.552 MPa |
| Maximum Allowable Pressure Supply | 100 psi0.689 MPa |
| Resolution | InfiniteInfinite |
| Maximum Speed | 164 ft/s50m/sec |
| Common Guide Surfaces | Granite, hard-coated aluminum, ceramics, glass, stainless steel, plated steelGranite, hard-coated aluminum, ceramics, glass, stainless steel, plated steel |
| Suggested Guide Surface Finish | 16 RMS16 RMS |
