8″ Slide for 3×5″ Guidebar – 12″ Travel End-Supported Air Slides

The largest of New Way's end-supported air slides, this unit features an 8" long Truck, which provides integrated accuracy with a 3" x 5" guidebar over 12" of travel. This standard New Way® integrated slide-and-guide assembly arrives ready for end-supported applications.
Category:
Units: US METRIC
Title Specifications
Part # S40-01200-125508S40-01200-125508
Input Pressure 60 psi0.41 MPa
Flow 25.4 SCFH10.98 NLPM
Maximum Load (Z) "Top Load" 311.23 lbs1384.4 N
Maximum Load (Y) "Side Load" 266.24 lbs1184.3 N
Accuracy “X” 10 Micro-Inches per Inch0.25 micron per 25MM
Accuracy “Y” 10 Micro-Inches per Inch0.25 micron per 25MM
Stiffness "Y" 2,662,491 lb/in466,273.5 N/mm
Stiffness "Z" 3,112,489 lb/in545,080.3 N/mm
Pitch Moment Max 535.0 lbs-in60.45 N-m
Roll Moment Max 513.7 lb-in58.05 N-m
Yaw Moment Max 457.5 lb-in51.7 N-m
Rail Length 20 in508 mm
Travel Length 12 in304.8 mm

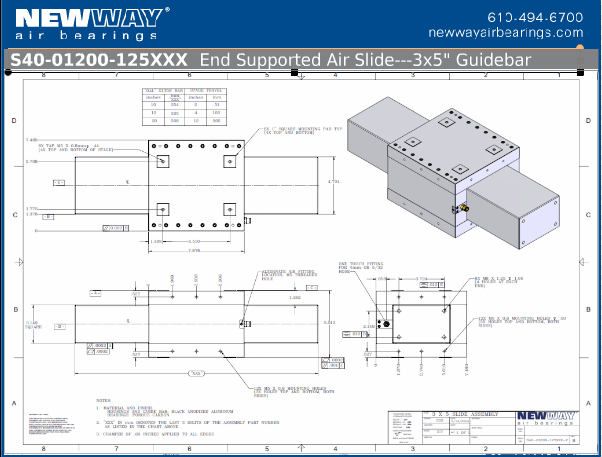

12in travel end supported air slides engineering drawings
