Epoxy Bonding Kit DWH 316

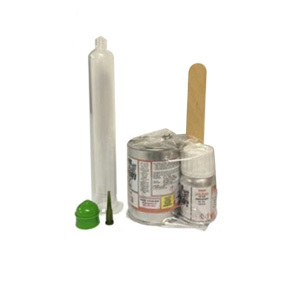

New Way Air Bearings® offers an Epoxy Bonding Kit (99-0194) for use in creating hard mount applications with New Way Air Bushings and Bonded Bearings. The kit includes:
  • DWH 316 Adhesive 100 Gram Kit
  • Tube for epoxy
  • Olive injection tip for the tube
  • Piston to push the adhesive
  • Tongue suppressor for mixing the epoxy
Contact us today to see how the Epoxy Bonding Kit can improve your hard mount applications!
Category:
Units: US METRIC
Title Specifications
SKU 99-019499-0194
Viscosity (+20 ℃) [mPas] PuttyPutty
Pot Life (+20 ℃) 40 min40 min
Cure Time (+20 ℃) 24 h24 h
Cure Time to Dismantle (+20 ℃) 18 h18 h
Specific Weight 1.65 g/cm31.65 g/cm3
E-Modulus DIN 53457 8200 N/mm28200 N/mm2
Compressive Strength 145 N/mm2145 N/mm2
Hardness [Shore A] 8282
Tensile Strength 72.5 N/mm272.5 N/mm2
Adhesion 15.5 N/mm215.5 N/mm2
Bending Strength 120 N/mm2120 N/mm2
Temperature Resistance -40℃ up to +80℃ (permanent), 130℃ (temporary)-40℃ up to +80℃ (permanent), 130℃ (temporary)
Shrinkage at Cure Hardly measurable at 1 mm layer thicknessHardly measurable at 1 mm layer thickness
