| Title | Specifications |
|---|---|
| Size | 0.50 Inch ID0.50 Inch ID |
| SKU | S301201S301201 |
| Input Pressure | 60 psi0.41 MPa |

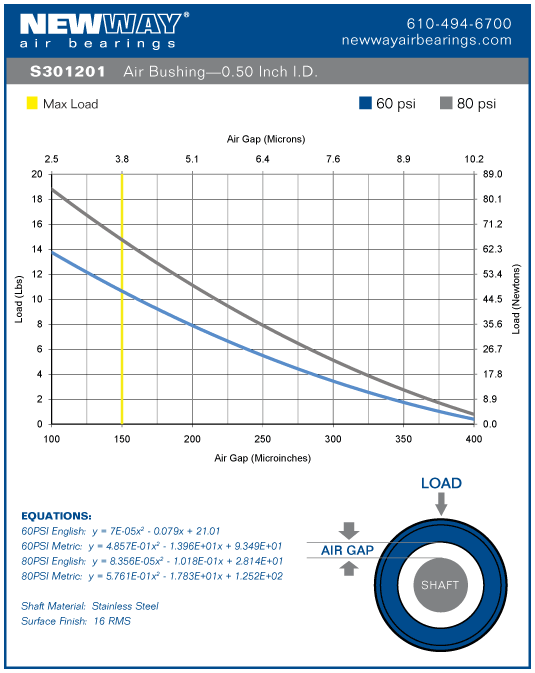

| Radial Load Max | 10 lb44 N |
| Radial Stiffness | 0.06 lb/μin11 N/μm |
| Pitch Moment Max | 7.5 lb-in0.8 N-m |
| Pitch Stiffness | 19 lb-in/mil rad2.1 N-m/mil rad |
| Flowrate on Shaft | 4.75 - 6.60 SCFH2.05 - 2.85 NLPM |
| Air Gap at maximum recommended load | 150 micro-inches4 microns |

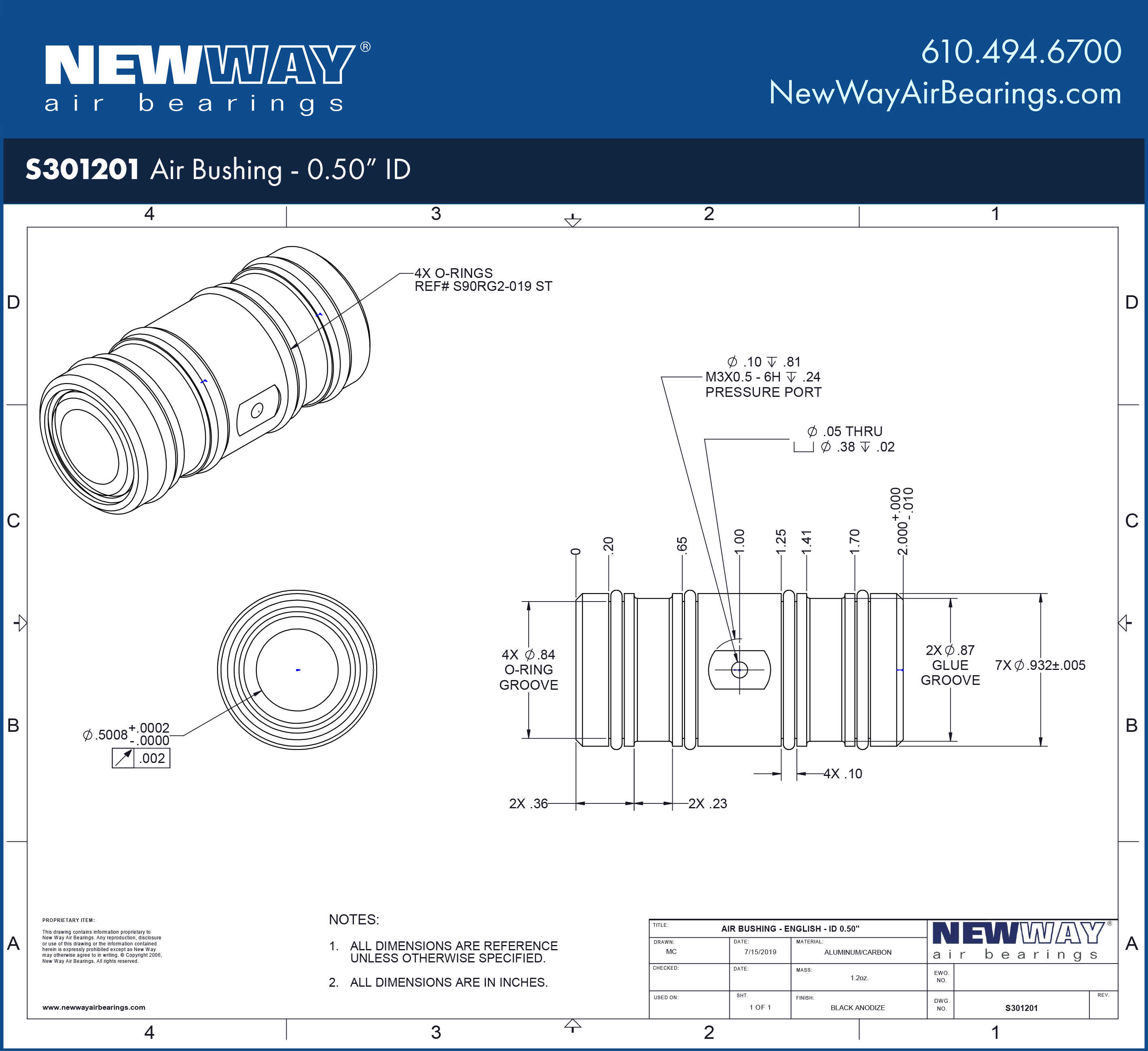

| Bushing Inside Diameter (ID) | 0.5008 in +.0002/-.000012.720 +0.005/-0.000 mm |
| Bushing Outside Diameter (OD) | 0.9 in23 mm |
| Bushing Length | 2.00 in51 mm |
| Bushing Weight | 1.1 oz31 g |
| Housing Material/Finish | Aluminum/AnodizedAluminum/Anodized |
| Porous Media Material | CarbonCarbon |
| Recommended Shaft Outside Diameter (OD) | 0.5000 in12.700 mm |
| Recommended Shaft Tolerance | -.0002/-.0007 in (g6)-6/-17 μm (g6) |
| Recommended Mounting Bore Diameter | 0.952 in +.005/-.00024.18 mm +.13/-.00 |
| Pressure Port Threads | M3 x 0.5M3 x 0.5 |
| Maximum Allowable Pressure Supply | 100 psi0.689 MPa |
| Bushing ID Speed | 76,500 rpm76,500 rpm |
| Resolution | InfiniteInfinite |
| Maximum Speed | 164.04 ft/s50 m/s |
| Common Shaft Materials | Anodized aluminum, stainless steel, nickel plated steel, ceramics, glassAnodized aluminum, stainless steel, nickel plated steel, ceramics, glass |
