Dovetail Air Slides 12×8 4″ Travel Dovetail Air Slides

This standard New Way® assembly arrives ready for continuously-supported or end-supported installation. The 12" x 8" Truck is appropriate for larger, heavier applications, while the accurate, paired guidebar provides 4" of travel.
Category:
Units: US METRIC
Title Specifications
Part # S41-06300-145406S41-06300-145406
Input Pressure 60 psi0.41 MPa
Flow 20 - 30 SCFH8.65 - 12.97 NLPM
Stage Area 8 x 12203 x 305
Stage Travel 4102
Stage Length 12305
Guidebar Length 16406
Stage Width 8203
Guidebar Width 5.7145
Stage Height 375
Travel Length 4 102
Guidebar Height 1.538
Stage Weight 13.10 lbs5.942 kg
Guidebar Weight 7.83 lbs3.552 kg
Total Weight 20.93 lbs9.494 kg

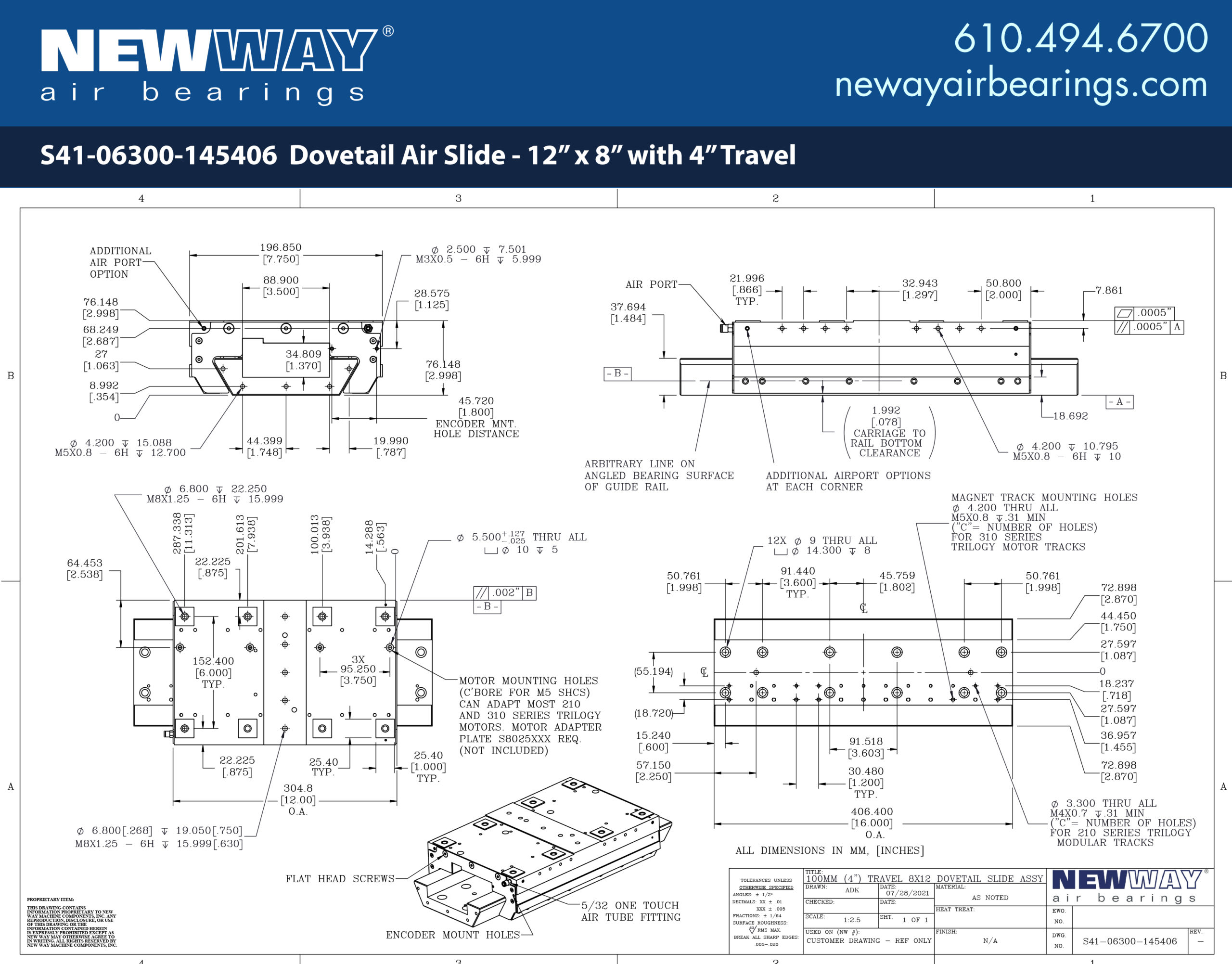

dovetail air slides 12x8 4in engineering drawings
