150mm Servo-Driven Rotary Stages

RT-150 is part of +Vantage's standard line of Servo-Driven Rotary Stages built on New Way Air Bearings. RT-150 integrates the 150mm Air Spindle with a zero cog motor and a standard encoder, delivering superior precision and a crash-resistant design, enabled by our Porous Media Technology™. Please visit our Servo-Driven Rotary Stages page for more information on our standard products, as well as more information on a custom order.
Category:
Units: US METRIC
Title Specifications
Part # RT-150RT-150
Stage Diameter 5.9 in.150 mm
Min/Max Rotation Speed 1 - 120 RPM1 - 120 RPM
Axial Load 312 lbs.1387 N
Radial Load 89 lbs.396 N
Axial Max. Stiffness 1.12 lb/µin197 N/µm
Radial Max. Stiffness 0.31 lb/µin54 N/µm
Continuous Torque 397.7 oz-in.2.809 N-m
Peak Torque 1193.2 oz-in.8.426 N-m
Continuous Current 5.1 Amp5.1 Amp
Encoder Head 47,360 counts/rev47,360 counts/rev
Resolution 27.36 arcsecs0.013 mrad
Encoder Output Frequency 1 mHz1 mHz
Accuracy 0.014 (+/- mrad)2.86 (+/- arcsecs)
Controller Galil/DMC-30012Galil/DMC-30012
Power Cable Galil/PWRCBL-30012-ISCNTLGalil/PWRCBL-30012-ISCNTL
Communication Cable 15 Pin DSUB15 Pin DSUB

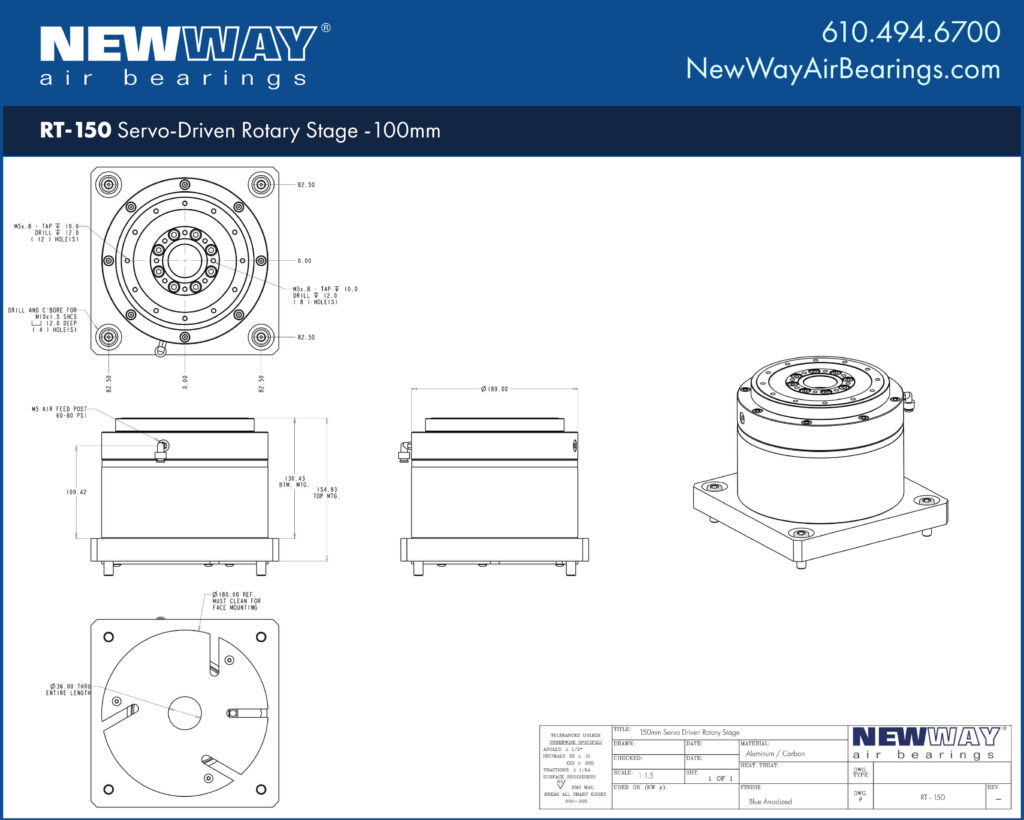

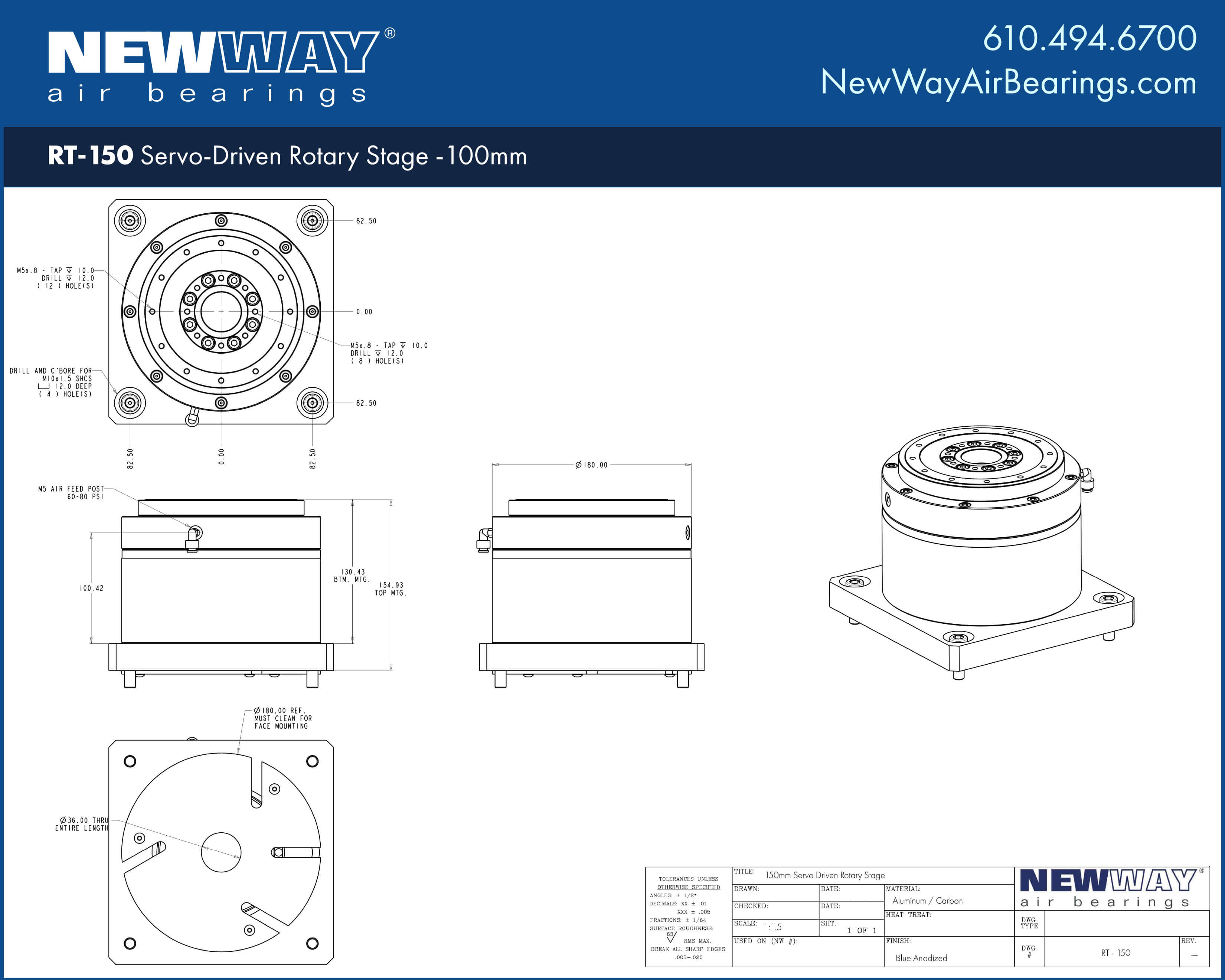

RT-150 Engineering Drawing
