| Title | Specifications |
|---|---|
| Size | 0.625 in ID0.625 in ID |
| SKU | S251601S251601 |
| Input Pressure | 60 psi0.41 MPa |
| Radial Load Max | 5 lbs22 N |
| Thrust Load Max | 30 lbs133 N |
| Axial Stiffness | N/AN/A |
| Radial Stiffness | N/AN/A |
| Flowrate on Shaft | 4.5 - 7.0 SCFH1.95 - 3.03 NLPM |
| Air Gap | 150 micro-inches3.81 microns |

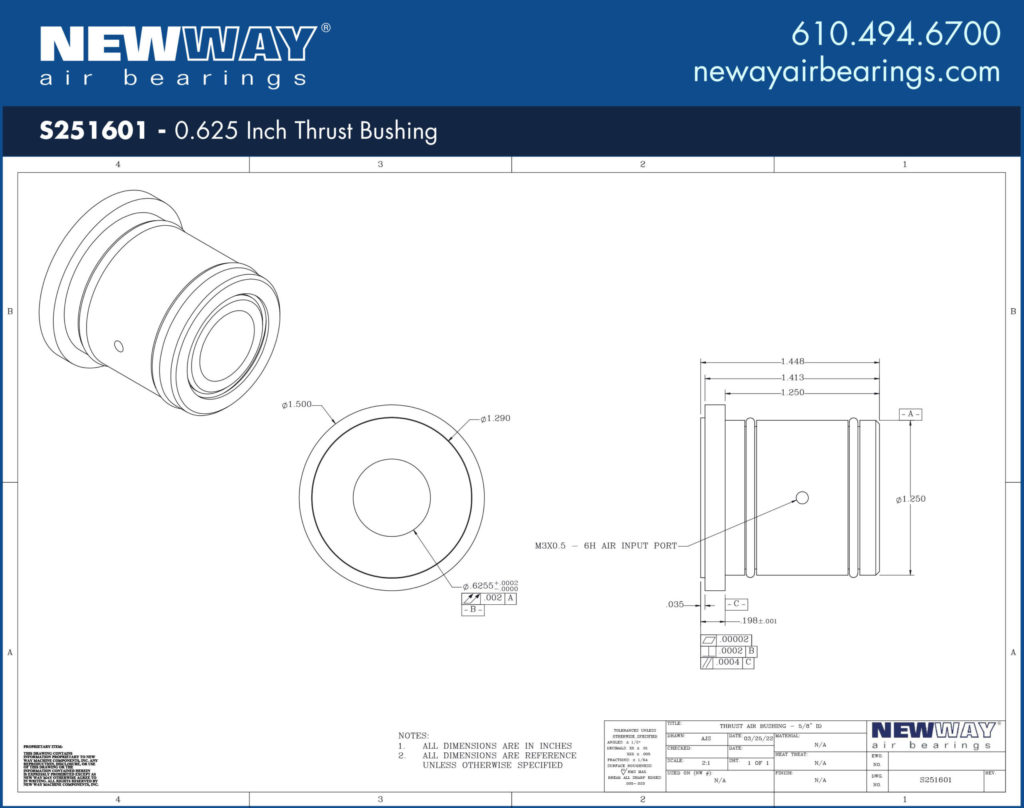

| Thrust Bushing | 0.6255 in +.0002/-.000015.888 + 0.005 /-0.000 mm |
| Bushing Outside | 1.250 in31.75mm |
| Thrust Face | 1.500 in38.1mm |
| Thrust Bushing Length | 1.448 in36.78mm |
| Thrust Bushing Weight | 1.80 oz51 grams |
| Housing Material/Finish | Aluminum/AnodizedAluminum/Anodized |
| Porous Media Material | CarbonCarbon |
| Recommended Shaft | 0.6250 in +.0000 / -.000315.875 +0.000 /-0.005 mm |
| Recommended Mounting Bore | 1.270 in +.003 / -.00032.3 +0.076 / -0.000 mm |
| Maximum Allowable Pressure Supply | 100 psi0.689 MPa |
| Resolution | InfiniteInfinite |
| Maximum Speed | 164 ft/s50 m/sec |
| Common Shaft Materials | Anodized aluminum, stainless steel, nickel plated steel, ceramics, glassAnodized aluminum, stainless steel, nickel plated steel, ceramics, glass |
