S3680R – 80mm Diameter

New Way® manufactures a ‘standard’ line of designed-to-order spherical air bearings. The housings are stocked and awaiting your radial specifications and resolution requirements. The S36 Series offers a wide range of sizes, from 25mm to 200mm, accommodating an even broader array of sphere sizes to fit any application. For example, a 65mm spherical air bearing can be manufactured with a radius from 65mm up to 325mm. Contact us today to discuss your desired specifications. There is a five piece minimum on customized products.
Category:
Units: US METRIC
Title Specifications
Part # S3680RS3680R
Diameter 3.150 in80 mm
T 0.787 in20 mm
R Min 3.150 in80 mm
R Max 15.748 in400 mm
B 0.512 in13 mm
C 0.181 in4.60 mm
K 0.484 in12.3 mm
M 0.850 in21.59 mm
N 0.118 in3 mm
Load at 5μm fly height 180.072 Lb801 N
Stiffness 0.651 lb/μin114 N/μm
Flow 0.170 (ft^3/min)4.80 SLPM
Bearing Weight 0.518 lb235 gm

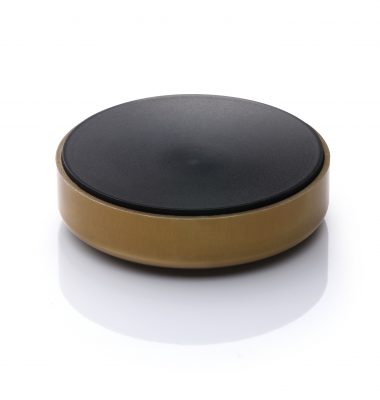

standard product line spherical air bearings
